APNS Certificate/ PEM file 7.x.x

In order to send push notifications to your app, APNS certificate is needed for your app and the same has to be converted to .pem format and uploaded to our dashboard. Follow the steps below to do the same:

Creating APNS Certificate

Generating the Certificate Signing Request (CSR)

First Open Keychain Access on your Mac and choose the menu option Request a Certificate from a Certificate Authority as shown below:


You should now see the window shown below. Enter your email address here and your app name for Common Name. Check Saved to disk and click Continue. Save the file as “.certSigningRequest”:

6a050fd-Screenshot_2020-01-12_at_14.14.44.pngCreate an APNS Certificate in Developer Account

Log-in to your developer account and go to Certificates, Identifiers and Profiles. Select Certificates Section and Click on the + icon to create a new certificate. In Create a New Certificate screen select Apple Push Notification service SSL(Sandbox & Production) and click Continue as shown below:


Next, select the App ID(App Bundle ID) for which you are creating the APNS certificate and click Continue



APP ID Selection Note

Ensure Push Notification capability is enabled for the App(App ID selected) you are creating an APNS certificate for.

Now choose the certificate signing request file created in the first step and click Continue as shown below:


That's it! your APNS certificate has been successfully created. Go ahead and download the same and open it to include it in your Mac Keychain Access


Converting Certificate to PEM format

Follow the below steps to convert the APNS certificate obtained in the previous step to .pem file:

  1. First, go to Keychain Access and select your APNS certificate, then right-click on it select Export option. Now export your certificate in .p12 format. You will be prompted to provide a password for .p12, do the same.

  2. Convert the .p12 file obtained in the previous step into a .pem file by using openssl commands as shown below, here you will have to provide the Import Password:

$ openssl pkcs12 -in p12Cert.p12 -out pemAPNSCert.pem -nodes
Enter Import Password:
MAC verified OK


You can also go the SSL Converter here and convert your .p12 file to .pem.

Verify .pem file

Before uploading the certificate to MoEngage Dashboard, verify the .pem file obtained:

  1. First, open the .pem in a text editor to view its content. The certificate content should be in format as shown below. Make sure the pem file contains both Certificate content(from BEGIN CERTIFICATE to END CERTIFICATE) as well as Certificate Private Key (from BEGIN PRIVATE KEY to END PRIVATE KEY) :
Bag Attributes
    friendlyName: Apple Push Services:<Bundle ID>
    localKeyID: <>

<Certificate Content>

Bag Attributes
    friendlyName: <>
    localKeyID: <>
Key Attributes: <No Attributes>

<Certificate Private Key>

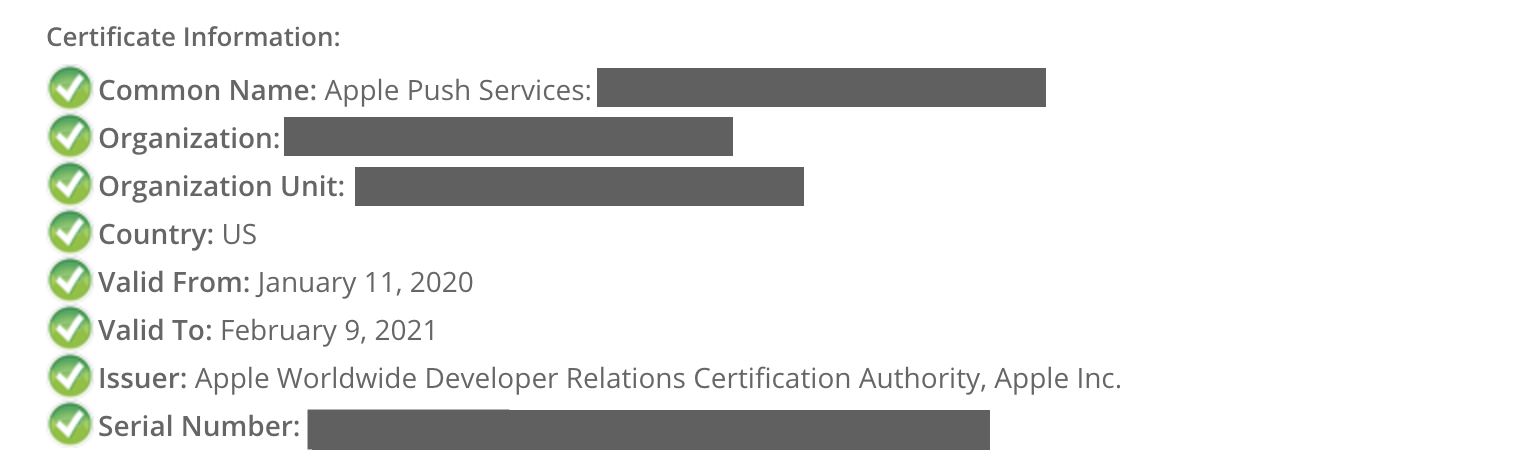

  1. Also, you check the validity of the certificate by going to SSLShopper Certificate Decoder and paste the Certificate Content (from BEGIN CERTIFICATE to END CERTIFICATE) to get all the info about the certificate as shown below:9449df7-Screenshot_2020-01-12_at_15.58.10.png

As you can see the Common Name should contain Apple Push Services and the App's Bundle ID. Confirm the organization's information and also the Validity of the Certificate. Once everything is verified, upload the certificate to our dashboard.

Uploading PEM file to MoEngage Dashboard

Open the settings page in the MoEngage Dashboard, go to Settings > Push > Mobile Push > iOS. and upload the .pem file. Enter the password if set for the .pem file OR leave it blank.


iPad Support

In case, you have different apps for iPhones and iPads(Different Bundle IDs), set up certificates for both iOS and iPad separately in the dashboard in order to be able to send the messages to all the devices.
