Manual Integration 7.x.x

To install manually, follow the steps below:

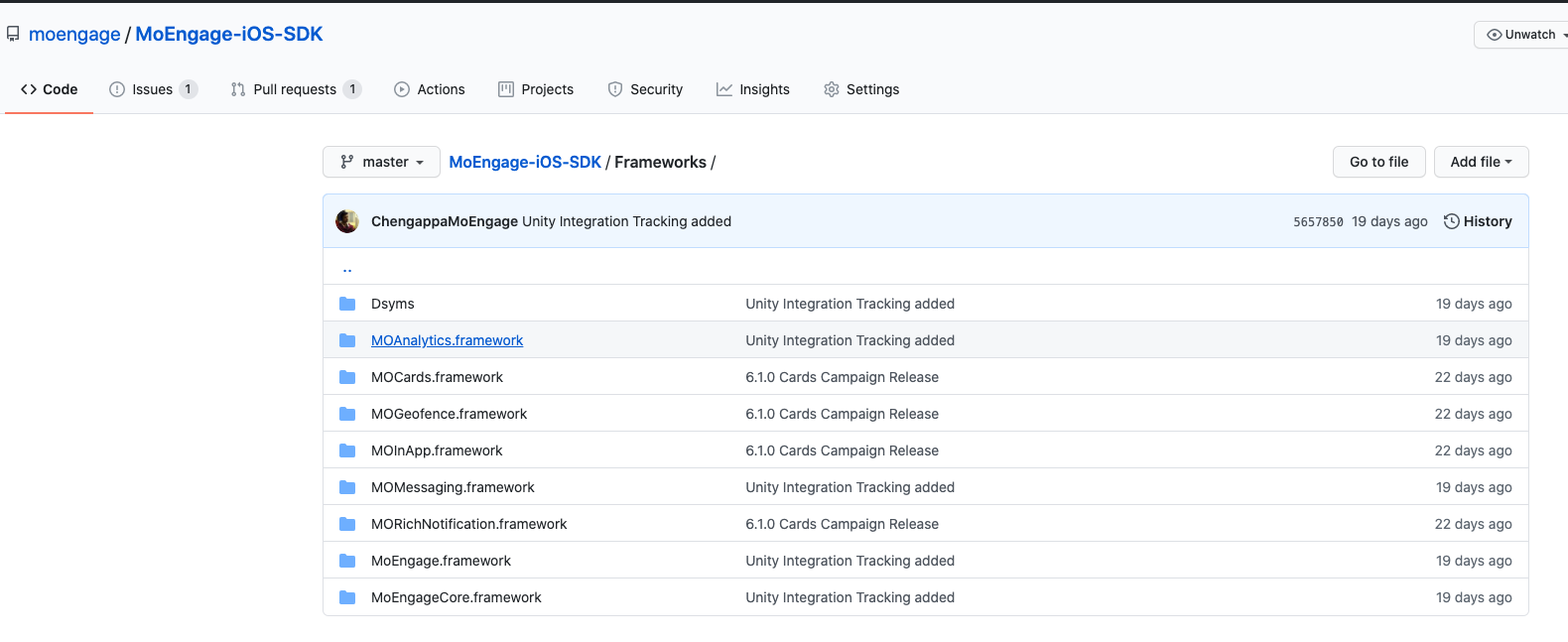

Download the latest SDK from our MoEngage-iOS-SDK Github repository


Copy Framework files into your project

Add the Framework file of the module you want to integrate into your project. Also, make sure that MoEngage.framework,MoEngageCore.framework,MOAnalytics.framework and MOMessaging.framework are added [to App target]. This is because all the other modules have a dependency on these frameworks.

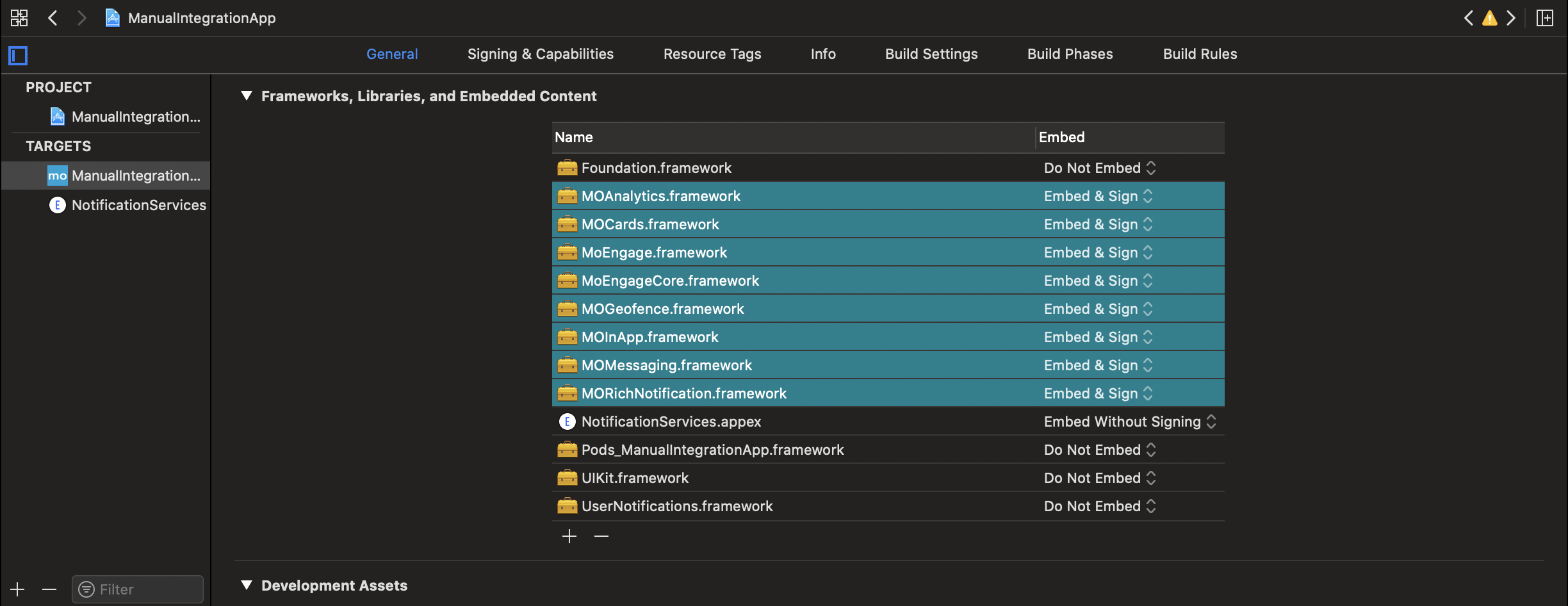

Embedded Frameworks in App Target

Make sure to embed the required frameworks to App Target as shown below, set the Embed option to Embed & Sign for MoEngage framework files: ebe7683-ManualIntegration.png

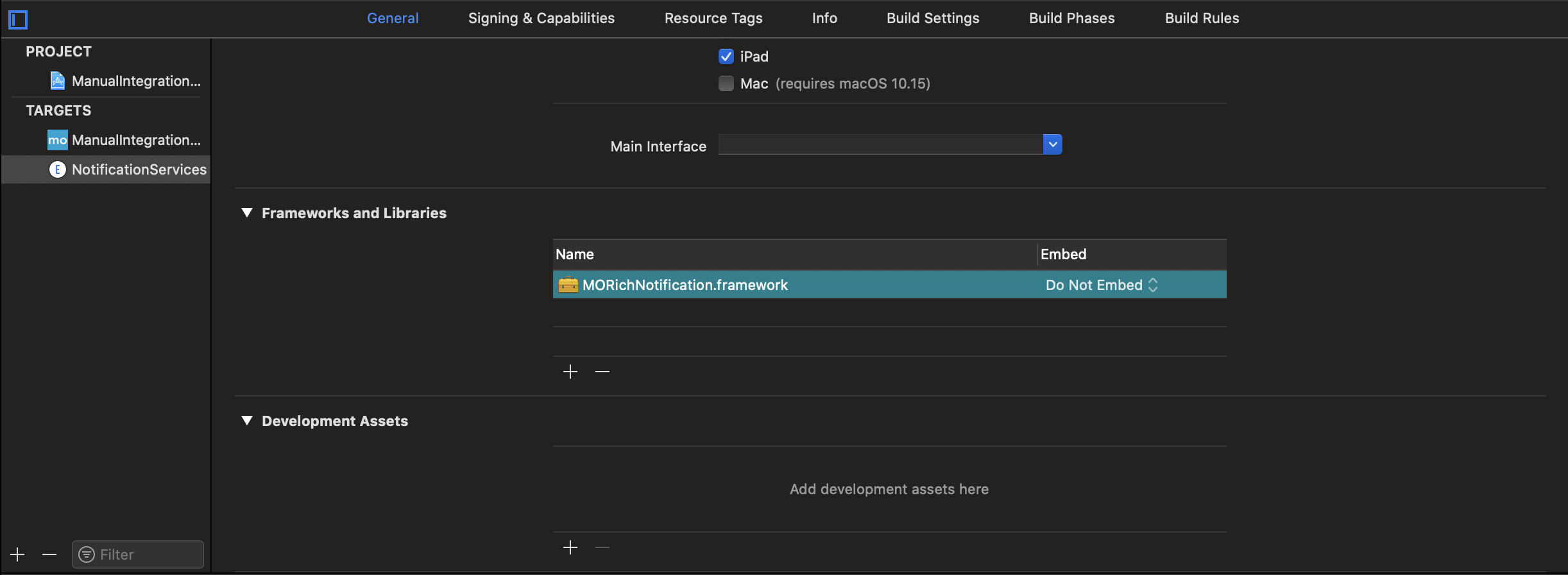

Link MORichNotification framework in App Extensions:

This is only required if you are using the MORichNotification framework in the project. Make sure to link the framework in the Extension targets as shown below and set Embed option to Do Not Embed in this case as it is already embedded in your App Target:


Add the Run Script for removing unsupported architectures

Select App Target and go to Build Phase and add a Run Script step to your build steps, set it to use /bin/sh and enter the script provided below. And it's a generic script for all the manually integrated frameworks for removing unsupported architectures(Simulator architectures) while exporting the build OR submitting the app to AppStore:

Shell
if [ "$CONFIGURATION" == "Debug" ]; then
echo "Skip frameworks cleaning in debug configuration"
exit 0
fi

APP_PATH="${TARGET_BUILD_DIR}/${WRAPPER_NAME}"

# This script loops through the frameworks embedded in the application and
# removes unused architectures.
find "$APP_PATH" -name '*.framework' -type d | while read -r FRAMEWORK
do
    FRAMEWORK_EXECUTABLE_NAME=$(defaults read "$FRAMEWORK/Info.plist" CFBundleExecutable)
    FRAMEWORK_EXECUTABLE_PATH="$FRAMEWORK/$FRAMEWORK_EXECUTABLE_NAME"
    echo "Executable is $FRAMEWORK_EXECUTABLE_PATH"

    EXTRACTED_ARCHS=()

    for ARCH in $ARCHS
    do
        echo "Extracting $ARCH from $FRAMEWORK_EXECUTABLE_NAME"
        lipo -extract "$ARCH" "$FRAMEWORK_EXECUTABLE_PATH" -o "$FRAMEWORK_EXECUTABLE_PATH-$ARCH"
        EXTRACTED_ARCHS+=("$FRAMEWORK_EXECUTABLE_PATH-$ARCH")
    done

    echo "Merging extracted architectures: ${ARCHS}"
    lipo -o "$FRAMEWORK_EXECUTABLE_PATH-merged" -create "${EXTRACTED_ARCHS[@]}"
    rm "${EXTRACTED_ARCHS[@]}"

    echo "Replacing original executable with thinned version"
    rm "$FRAMEWORK_EXECUTABLE_PATH"
    mv "$FRAMEWORK_EXECUTABLE_PATH-merged" "$FRAMEWORK_EXECUTABLE_PATH"

done
