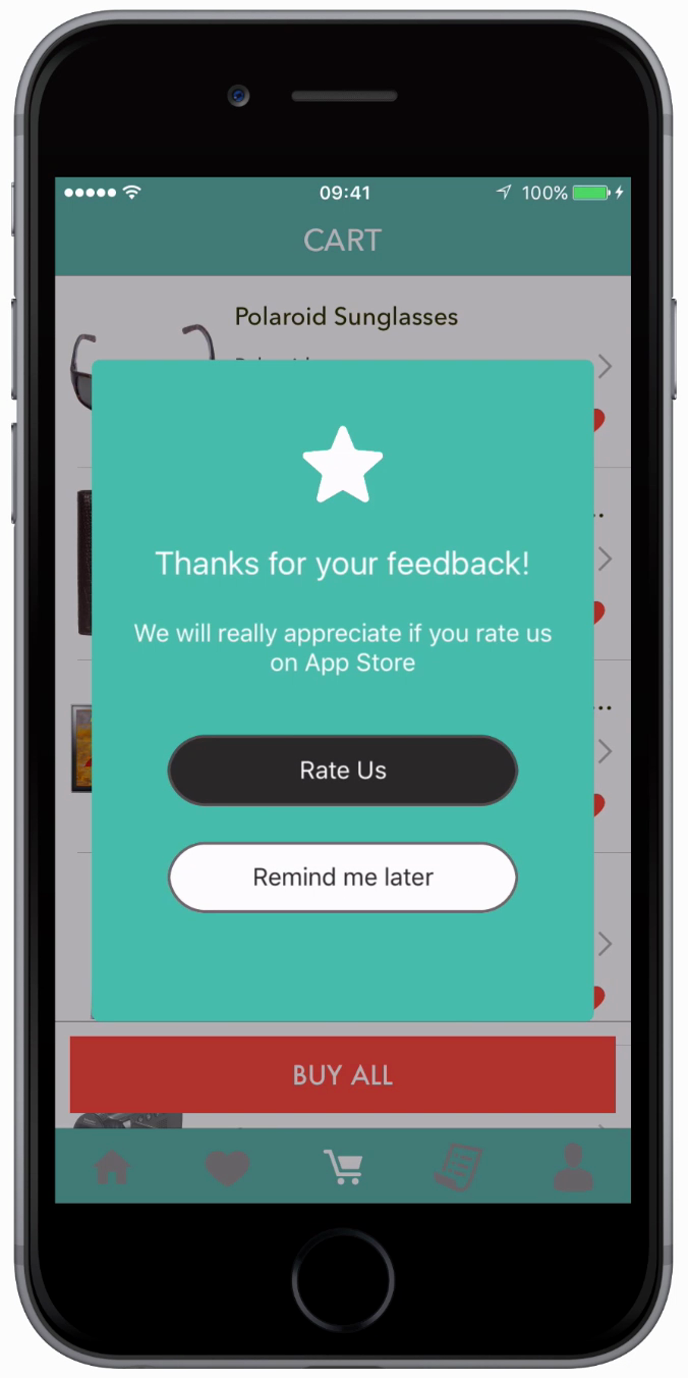

In-App Campaigns are custom views that you can send to a segment of users to show custom messages or give new offers or take to some specific pages. They can be created from your MoEngage account.
warning |
SDK Version Follow this doc only if you are using MoEngage-iOS-SDK version 8.2.0 and later. If you are using version 5.2.7 or less then follow the doc in this link. |
SDK Installation
Install using CocoaPod
Integrate the MoEngageInApp framework by adding the dependency in the pod file as described.
pod 'MoEngage-iOS-SDK/InApps','~> 9.18.0'
Now run pod install
to install the framework
Install using Swift Package Manager
MoEngageInApp is supported through SPM from SDK version 3.2.0. To integrate use the following GitHub URL link and set the branch as master or version as 9.18.0 and above https://github.com/moengage/MoEngage-iOS-SDK.git
Manual Integration
info |
Manual Integration: To integrate the |
How to show In-App Message?
To use In-app Messaging, import MoEngageInApps
and then add the code below to the view controller(s) in which you want to show the In-app.
import MoEngageInApps
// Add the below line to show inapp
MoEngageSDKInApp.sharedInstance.showInApp()
@import MoEngageInApps;
// Add the below line to show inapp
[[MoEngageSDKInApp sharedInstance] showInApp];

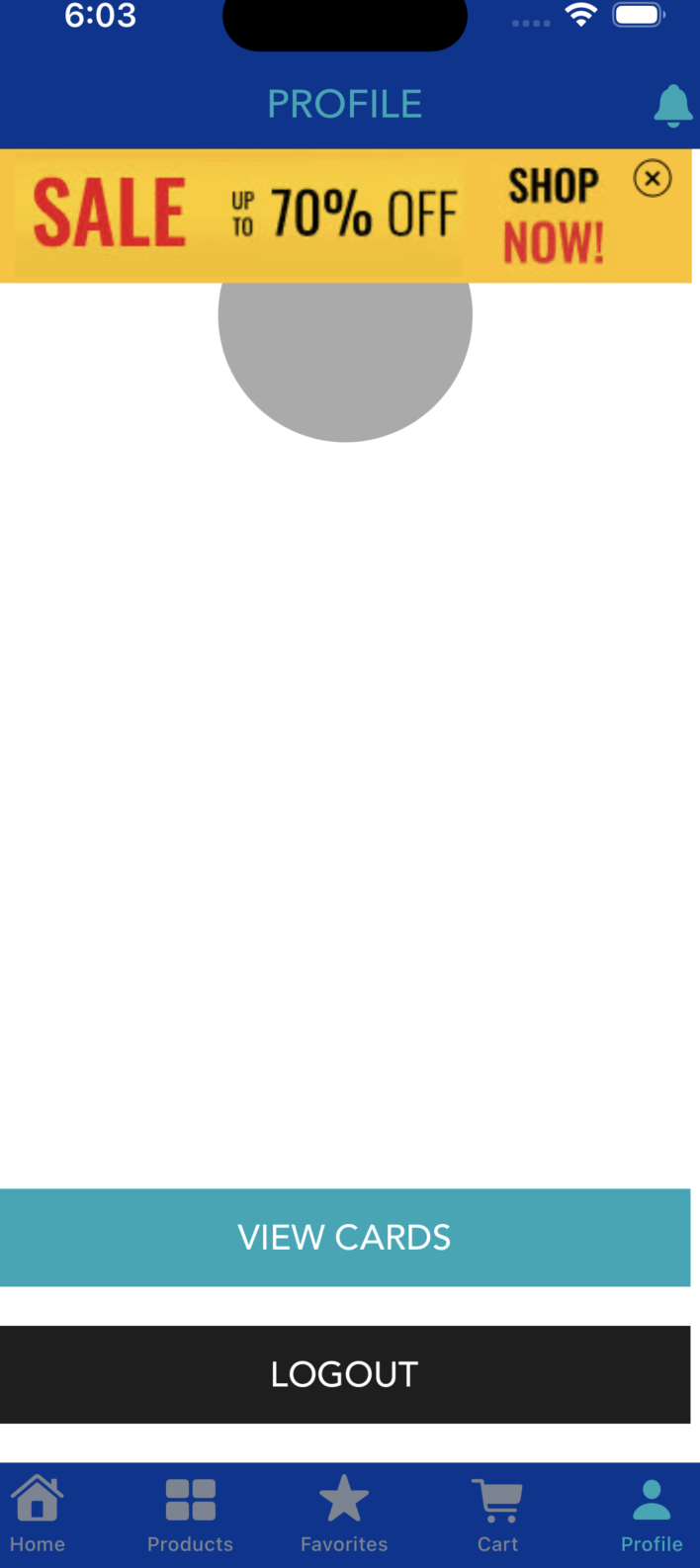

Non Intrusive Nudges
Starting with version 5.0.0, MoEngage InApp SDK supports displaying Non-Intrusive nudges.
SDK can show Nudges in four positions (i.e. at the top, bottom , bottom left, and bottom right of the screen). Call the showNudge(atPosition:) in the view controller(s) where you want SDK to show the nudges :
//For showing nudges at Top of the screen
MoEngageSDKInApp.sharedInstance.showNudge(atPosition: NudgePositionTop)
//For showing nudges at Bottom of the screen
MoEngageSDKInApp.sharedInstance.showNudge(atPosition: NudgePositionBottom)
//For showing nudges at BottomLeft of the screen
MoEngageSDKInApp.sharedInstance.showNudge(atPosition: NudgePositionBottomLeft)
//For showing nudges at BottomRight of the screen
MoEngageSDKInApp.sharedInstance.showNudge(atPosition: NudgePositionBottomRight)
//For showing nudges at any above mentioned position
MoEngageSDKInApp.sharedInstance.showNudge()
//For showing nudges at Top of the screen
[[MoEngageSDKInApp sharedInstance] showNudgeAtPosition:NudgePositionTop];
//For showing nudges at Bottom of the screen
[[MoEngageSDKInApp sharedInstance] showNudgeAtPosition:NudgePositionBottom];
//For showing nudges at BottomLeft of the screen
[[MoEngageSDKInApp sharedInstance] showNudgeAtPosition:NudgePositionBottomLeft];
//For showing nudges at BottomRight of the screen
[[MoEngageSDKInApp sharedInstance] showNudgeAtPosition:NudgePositionBottomRight];
//For showing nudges at any above mentioned position.
[[MoEngageSDKInApp sharedInstance] showNudge];
InApp Callbacks
warning |
Note Make sure the class is configured with MoEngageInAppNativeDelegate to receive all the callbacks. |
To observe callbacks whenever an inApp is shown, dismissed, or clicked implement MoEngageInAppNativeDelegate. Set the delegate using the below methods.
MoEngageSDKInApp.sharedInstance.setInAppDelegate(self)
[[MoEngageSDKInApp sharedInstance] setInAppDelegate:self];
Once the delegate is set you will receive the following callbacks:
// Called when an inApp is shown on the screen
func inAppShown(withCampaignInfo inappCampaign: MoEngageInAppCampaign, forAccountMeta accountMeta: MoEngageAccountMeta) {
print("InApp shown callback for Campaign ID(\(inappCampaign.campaign_id)) and CampaignName(\(inappCampaign.campaign_name))")
print("Account Meta AppID: \(accountMeta.appID)")
}
// Called when an inApp is dismissed by the user
func inAppDismissed(withCampaignInfo inappCampaign: MoEngageInAppCampaign, forAccountMeta accountMeta: MoEngageAccountMeta) {
print("InApp dismissed callback for Campaign ID(\(inappCampaign.campaign_id)) and CampaignName(\(inappCampaign.campaign_name))")
print("Account Meta AppID: \(accountMeta.appID)")
}
// Called when an inApp is clicked by the user, and it has been configured with a custom action
func inAppClicked(withCampaignInfo inappCampaign: MoEngageInAppCampaign, andCustomActionInfo customAction: MoEngageInAppAction, forAccountMeta accountMeta: MoEngageAccountMeta) {
print("InApp Clicked with Campaign ID \(inappCampaign.campaign_id)")
print("Custom Actions Key Value Pairs: \(customAction.keyValuePairs)")
}
// Called when an inApp is clicked by the user, and it has been configured with a navigation action
// Below InApp version 6.00.0
func inAppClicked(withCampaignInfo inappCampaign: MoEngageInAppCampaign, andNavigationActionInfo navigationAction: MoEngageInAppAction, forAccountMeta accountMeta: MoEngageAccountMeta) {
print("InApp Clicked with Campaign ID \(inappCampaign.campaign_id)")
print("Navigation Action Screen Name \(navigationAction.screenName) Key Value Pairs: \((navigationAction.keyValuePairs))")
}
// Called when an inApp is clicked by the user, and it has been configured with a navigation action (Deeplink , Navigate To Screen)
// From and above InApp version 6.00.0
func inAppClicked(withCampaignInfo inappCampaign: MoEngageInAppCampaign, andNavigationActionInfo navigationAction: MoEngageInAppNavigationAction, forAccountMeta accountMeta: MoEngageAccountMeta) {
print("InApp Clicked with Campaign ID \(inappCampaign.campaign_id)")
print("Navigation Url \(navigationAction.navigationUrl) Key Value Pairs: \((navigationAction.keyValuePairs))")
print("Navigation Action Type : \(navigationAction.navigationType)")
}
// Called when an inApp is shown on the screen
(void)inAppShownWithCampaignInfo:(MoEngageInAppCampaign *)inappCampaign forAccountMeta:(MoEngageAccountMeta *)accountMeta {
NSLog(@"InApp Shown with Campaign ID %@",inappCampaign.campaign_id);
}
// Called when an inApp is dismissed by the user
- (void)inAppDismissedWithCampaignInfo:(MoEngageInAppCampaign *)inappCampaign forAccountMeta:(MoEngageAccountMeta *)accountMeta {
NSLog(@"InApp Dismissed with Campaign ID %@",inappCampaign.campaign_id);
}
// Called when an inApp is clicked by the user, and it has been configured with a custom action
- (void)inAppClickedWithCampaignInfo:(MoEngageInAppCampaign *)inappCampaign andCustomActionInfo:(MoEngageInAppAction *)customAction forAccountMeta:(MoEngageAccountMeta *)accountMeta {
NSLog(@"InApp Clicked with Campaign ID %@",inappCampaign.campaign_id);
NSLog(@"Custom Action Key Value Pairs: %@", customAction.screenName);
}
// Called when an inApp is clicked by the user, and it has been configured with a navigation action
// Below InApp version 5.03.0
- (void)inAppClickedWithCampaignInfo:(MoEngageInAppCampaign *)inappCampaign andNavigationActionInfo:(MoEngageInAppAction *)navigationAction forAccountMeta:(MoEngageAccountMeta *)accountMeta {
NSLog(@"InApp Clicked with Campaign ID %@",inappCampaign.campaign_id);
NSLog(@"Navigation Action Screen Name %@\n Key Value Pairs: %@", navigationAction.screenName,navigationAction.keyValuePairs);
}
// Called when an inApp is clicked by the user, and it has been configured with a navigation action (Deeplink, Navigate To Screen)
// From and above InApp version 5.03.0
-(void)inAppClickedWithCampaignInfo:(MoEngageInAppCampaign*)inappCampaign andNavigationActionInfo:(MoEngageInAppNavigationAction*)navigationAction forAccountMeta:(nonnull MoEngageAccountMeta *)accountMeta {
NSLog(@"InApp Clicked with Campaign ID %@",inappCampaign.campaign_id);
NSLog(@"Navigation Action Screen Name %@\n Key Value Pairs: %@", navigationAction.navigationUrl,navigationAction.keyValuePairs);
}
Context-Based InApps
We have introduced context-based InApps with SDK version 6.0.0. While creating InApp campaigns you can set the contexts OR tags to the campaign. SDK will check with the current context set in the App and show the inApp only when a current set context matches the campaign context.
Set Current Context:
To set the current context for the InApp module use setCurrentInAppContexts(_:) as shown below:
MoEngageSDKInApp.sharedInstance.setCurrentInAppContexts(["Home","CategoriesScreen"])
[[MoEngageSDKInApp sharedInstance] setCurrentInAppContexts:@[@"Home",@"CategoriesScreen"]];
Reset Context:
To reset the current context for the InApp module call invalidateInAppContexts() method:
MoEngageSDKInApp.sharedInstance.invalidateInAppContexts()
[[MoEngageSDKInApp sharedInstance] invalidateInAppContexts];
Disable In-Apps in ViewController
If you don't want to show InApp messages in a particular ViewController, use blockInApp(forViewController:) method as shown below:
//For not showing in apps in viewController
MoEngageSDKInApp.sharedInstance.blockInApp(forViewController: viewController);
//For not showing in apps in viewController
[[MoEngageSDKInApp sharedInstance] blockInAppForViewController:viewController];
Disabling In-Apps for App
If you do not wish to use InApp messaging, set the property disableInApps. The property has to be set before the initial call.
MoEngageSDKInApp.sharedInstance.disableInApps()
[[MoEngageSDKInApp sharedInstance] disableInApps];
Self handled In-Apps
Self handled In-Apps are not shown by the SDK. While creating the campaign, a String payload has to be provided. The same payload will be provided to the application on campaign delivery. InApp Campaigns that have trigger condition as Screen launch can be fetched using getSelfHandledInApp(completionBlock:).
MoEngageSDKInApp.sharedInstance.getSelfHandledInApp { campaignInfo, accountMeta
if let campaignInfo = campaignInfo{ print("Self-Hanled InApp Content \(campaignInfo.campaignContent)")
// Update UI with Self Handled InApp Content
} else{
print("No Self Handled campaign available")
}
}
[[MoEngageSDKInApp sharedInstance] getSelfHandledInAppWithCompletionBlock:^(MoEngageInAppSelfHandledCampaign * _Nullable, MoEngageAccountMeta * _Nullable) {
if (campaignInfo != nil) {
NSLog(@"Self Handled inApp content : %@", campaignInfo.campaignContent);
// Update UI using the self-handled content
}
else{
NSLog(@"Self-Handled InApp not available");
}
}];
For getting the Self-Handled InApp payload in the case of Event-Triggered campaigns, set the selfHandledInAppTriggered(withInfo:forAccountMeta:) delegate. SDK will automatically deliver the payload in this delegate if the user is eligible for the campaign.
// This method is called when an event triggers an in-app from the server, which is of type self handled.
func selfHandledInAppTriggered(withInfo inappCampaign: MoEngageInAppSelfHandledCampaign, forAccountMeta accountMeta: MoEngageAccountMeta) {
print("Self Handled InApp Triggered with info:\nCampaign ID:\(inappCampaign.campaign_id) \nContent: \(inappCampaign.campaignContent)")
}
// This method is called when an event triggers an in-app from the server, which is of type self handled.
- (void)selfHandledInAppTriggeredWithInfo:(MoEngageInAppSelfHandledCampaign *)inappCampaign forAccountMeta:(MoEngageAccountMeta *)accountMeta {
NSLog(@"Self Handled InApp Triggered with info:\nCampaign ID: %@ \nContent: %@",inappCampaign.campaign_id, inappCampaign.campaignContent);
}
info |
Note The above method will also be called when trying to test the self-handled campaign through a test campaign. |
Self handled multiple In-Apps
Starting with MoEngage-iOS-SDK 9.19.0 version, MoEngage InApp SDK supports displaying Multiple Self Handled InApps.
To get multiple self handled inApps for multiple contexts set by the user, use sdk's getSelfHandledInApps(completionBlock:).
MoEngageSDKInApp.sharedInstance.getSelfHandledInApps(for: instance) { [weak self] campaignData in
print(campaignData)
}
[[MoEngageSDKInApp sharedInstance] getSelfHandledInAppsForInstance:instance withCompletionBlock:^(MoEngageInAppSelfHandledData * _Nonnull campaignData) {
NSLog(@"%@", campaignData);
}];
Tracking Self Handled Multiple InApps
The getSelfHandledInApps(completionBlock:) method returns MoEngageInAppSelfHandledData, which contains a list of MoEngageInAppSelfHandledCampaign objects. The statistics for each MoEngageInAppSelfHandledCampaign object must be tracked individually below APIs.
Fetching Contextual Multiple Self-Handled InApps
To fetch contextual multiple self-handled inapps, set the inapp contexts using setCurrentInAppContexts() before calling getSelfHandledInApps(completionBlock:). This will return a list of contextual and non-contextual inapps(in the order of campaign priority set at the time of campaign creation).
Tracking InApp Shown And Clicked:
For tracking In-App shown for self-handled in-apps use the selfHandledShown(campaignInfo:) and provide campaign instance as a parameter:
// Call this method when you show the self handled in-app so we can update impressions.
MoEngageSDKInApp.sharedInstance.selfHandledShown(campaignInfo: campaignInfo)
// Call this method when you show the self handled in-app so we can update impressions.
[[MoEngageSDKInApp sharedInstance] selfHandledShownWithCampaignInfo:campInfo];
For tracking InApp Clicked information for stats, call the following methods :
// Call this method to track if self handled in app widget(other than Primary Widget) is clicked.
MoEngageSDKInApp.sharedInstance.selfHandledClicked(campaignInfo: campaignInfo)
// Call this method to track dismiss actions on the inApp.
MoEngageSDKInApp.sharedInstance.selfHandledDismissed(campaignInfo: campaignInfo)
// Call this method to track if self handled in app widget(other than Primary Widget) is clicked.
[[MoEngageSDKInApp sharedInstance] selfHandledClickedWithCampaignInfo:campaignInfo];
// Call this method to track dismiss actions on the inApp.
[[MoEngageSDKInApp sharedInstance] selfHandledDismissedWithCampaignInfo:campaignInfo];
In-App Messaging Rules
We use the following rules while showing the In-App:
Preconditions for inApp to work:
- If InApp Backend Sync was successful in the current session or not.
- Check if InApp is disabled on the current screen.
The following are checked for each campaign in the list of active campaigns(sorted according to priority and Last Updated Time)
- Check Global Delay has lapsed, skip this if Ignore Global Delay set for the campaign.
- Check if the campaign has expired
- Display Rules
- Check Show Only on Screen
- Check with current contexts
- Delivery Controls
- Persistence Check(If primary action of InApp is done but still want to show the inApp)
- Check if the campaign has been shown the maximum number of times.
- Check if the campaign level delay has crossed.
- Check Device Orientation is Portrait for Native InApp and required Orientation for HTML InApp(as selected during campaign creation).
The first campaign satisfying all the rules is shown to the user.
