Notification Center for MoEngage SDK version 11.1.00
warning

Critical

This module is deprecated; integrate this module only if you are using 11.1.00 or below version of moe-android-sdk. Refer to Notification Center. If you are using a later version of moe-android-sdk.

Adding dependency

Add the following dependency in build.gradle.

Groovy
implementation("com.moengage:addon-inbox:$sdkVersion")

where $sdkVersion should be replaced by the latest version of the SDK.

Component Declaration

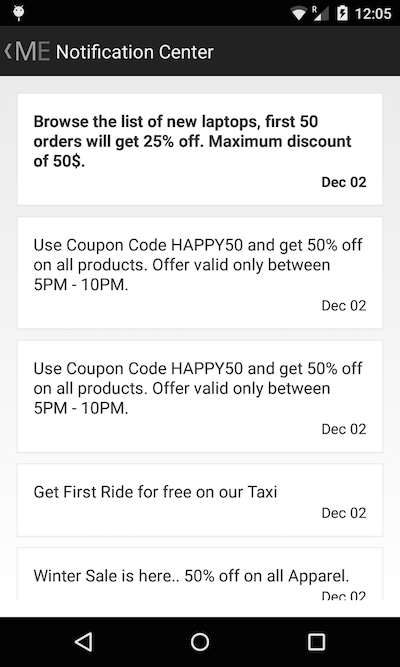

Add the following activity to the manifest file.

XML
<activity
    android:name="com.moengage.addon.inbox.MoEInboxActivity"
    android:label="[ACTIVITY_NAME]" >
</activity>

Replace [ACTIVITY_NAME] with the name of the activity which you want to show for Inbox


Customizing Notification Center

You can override InboxAdapter to customize the look and feel of the notification Items.
Refer to the API documentation for helper methods to parse the payload.
Example:

First, Override the ViewHolder

Java
import android.view.View;
import android.widget.Button;
import android.widget.TextView;
import com.moengage.addon.inbox.InboxManager;

public class CustomHolder extends InboxManager.ViewHolder {
    public TextView title;
    public TextView message;
    public boolean hasCouponCode;
    public String code;
    public TextView timeStamp;
    public TextView couponCode;
    public Button copyCode;
    public View couponAction;
}

Then define your own XML

XML
<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
    android:orientation="vertical"
    android:layout_width="match_parent"
    android:layout_height="wrap_content"
    android:background="@drawable/moe_card_background"
    android:descendantFocusability="blocksDescendants"
    android:padding="5dp">

  <LinearLayout
      android:orientation="horizontal"
      android:layout_width="match_parent"
      android:layout_height="wrap_content">

    <TextView
        android:id="@+id/title"
        android:gravity="left"
        android:layout_weight=".7"
        android:layout_width="0dp"
        android:singleLine="true"
        android:ellipsize="end"
        android:layout_height="wrap_content"
        android:textStyle="bold"
        android:textColor="@color/label_color"
        />

    <TextView
        android:id="@+id/date"
        android:layout_marginRight="15dp"
        android:gravity="right"
        android:layout_weight=".3"
        android:layout_width="0dp"
        android:layout_height="wrap_content"
        />
  </LinearLayout>

  <TextView android:layout_width="match_parent" android:layout_height="wrap_content"
      android:layout_marginTop="5dp"
      android:layout_marginBottom="5dp"
      android:id="@+id/message"/>

  <RelativeLayout android:layout_width="match_parent"
      android:id="@+id/couponAction"
      android:layout_height="wrap_content">
    <TextView
        android:id="@+id/label_code"
        android:text="@string/labelCode"
        android:textStyle="bold"
        android:textColor="@color/label_color"
        android:gravity="left"
        android:layout_alignParentTop="true"
        android:layout_alignParentLeft="true"
        android:layout_centerVertical="true"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        android:layout_marginRight="15dp"/>

    <TextView
        android:id="@+id/code"
        android:gravity="left"
        android:textStyle="bold"
        android:textColor="@color/blue"
        android:layout_centerVertical="true"
        android:layout_toRightOf="@+id/label_code"
        android:layout_width="wrap_content"
        android:layout_height="wrap_content"
        />
    <Button android:layout_width="wrap_content"
        android:layout_centerVertical="true"
        android:layout_alignParentRight="true"
        android:paddingLeft="15dp"
        android:paddingRight="15dp"
        android:textColor="@android:color/black"
        android:layout_height="wrap_content" android:id="@+id/btnCopy"
        android:text="@string/btnLabelCopy"/>
  </RelativeLayout>
</LinearLayout>

Then override the InboxAdapter

Java
import android.annotation.TargetApi;
import android.content.Context;
import android.database.Cursor;
import android.os.Build;
import android.view.LayoutInflater;
import android.view.View;
import android.view.ViewGroup;
import android.widget.AdapterView;
import android.widget.Button;
import android.widget.TextView;
import android.widget.Toast;
import com.moe.pushlibrary.providers.MoEDataContract;
import com.moengage.addon.inbox.InboxManager;
import com.moengage.addon.inbox.InboxUtils;

public class CustomAdapter extends InboxManager.InboxAdapter {
  /**
   * Makes a new view to hold the data pointed to by cursor.
   *
   * @param context Interface to application's global information
   * @param cursor The cursor from which to get the data. The cursor is already moved to the
   * correct position.
   * @param parent The parent to which the new view is attached to
   * @return the new inflated view which will be used by the adapter
   */
  @Override public View newView(Context context, Cursor cursor, ViewGroup parent,
      LayoutInflater layoutInflater) {
      return layoutInflater.inflate(R.layout.item_custom, parent, false);
  }

  /**
   * Bind an existing view to the data pointed to by cursor
   *
   * @param holder The ViewHolder which should be updated to represent the contents of the
   * item at the given position in the data set.
   * @param context Interface to application's global information
   * @param cursor The cursor from which to get the data. The cursor is already moved to the
   * correct position.
   * @return The binded View which is ready to be shown
   */
  @Override public void bindData(CustomHolder holder, Context context, Cursor cursor) {
      String details = cursor.getString(MoEDataContract.MessageEntity.COLUMN_INDEX_MSG_DETAILS);
      //validity long millis = cursor.getLong(MoEDataContract.MessageEntity.COLUMN_INDEX_GTIME)
      holder.timeStamp.setText(InboxUtils.getTimeStamp(details, "dd MMM"));
      holder.hasCouponCode = InboxUtils.hasCouponCode(details);
      holder.code = InboxUtils.getCouponCode(details);
      holder.couponCode.setText(holder.code);
      holder.title.setText(InboxUtils.getTitle(details));
      holder.message.setText(InboxUtils.getMessage(details));
      holder.copyCode.setTag(holder.code);
      if(holder.hasCouponCode){
          holder.couponAction.setVisibility(View.VISIBLE);
      }else{
          holder.couponAction.setVisibility(View.GONE);
     }
  }

  /**
   * Callback method to be invoked when an item in this AdapterView has been clicked.
   *
   * @param view The view within the AdapterView that was clicked (this will be a view provided
   * by the adapter)
   * @param context Application Context
   * @return true if Click is being overriden, false otherwise
   */
  @Override public boolean onItemClick(View view, Context context) {
    return false;
  }

  /**
   * Return the ViewHolder from this method which will be used to reduce Hierarchy lookup and also
   * be used to piggy back data required when view is clicked
   *
   * @param convertView The view which is used by the adapter
   * @return The ViewHolder which should be updated to represent the contents of the
   * item at the given position in the data set.
   */
  @Override public CustomHolder getViewHolder(View convertView) {
      CustomHolder holder = (CustomHolder) convertView.getTag();
      if( null == holder ){
        holder = new CustomHolder();
        holder.title = (TextView) convertView.findViewById(R.id.title);
        holder.couponCode = (TextView) convertView.findViewById(R.id.code);
        holder.copyCode = (Button) convertView.findViewById(R.id.btnCopy);
        holder.copyCode.setOnClickListener(new View.OnClickListener() {
        @Override public void onClick(View v) {
            String code = (String) v.getTag();
            copyCouponCodeToClipboard(v.getContext(), code);
        }
      });
      holder.message = (TextView) convertView.findViewById(R.id.message);
      holder.timeStamp = (TextView) convertView.findViewById(R.id.date);
      holder.couponAction = convertView.findViewById(R.id.couponAction);
      convertView.setTag(holder);
    }
    return holder;
  }

  /**
   * Copies the specified coupon code to the Clipboard.
   *
   * @param mContext
   *            An instance of the application Context
   * @param couponcode
   *            The coupon code to be added to the Clipboard
   */
  public static void copyCouponCodeToClipboard(Context mContext,
      String couponcode) {
    int sdk = android.os.Build.VERSION.SDK_INT;
    if (sdk < android.os.Build.VERSION_CODES.HONEYCOMB) {
        copytoClipboardHoneyLess(mContext, couponcode);
    } else {
        copytoClipboardHoney(mContext, couponcode);
    }
    showToast("Coupon code copied to clipboard", mContext);
  }

  /**
   * Shows a Toast message
   *
   * @param message
   *            The message which needs to be shown
   * @param mContext
   *            An instance of the application Context
   */
  public static void showToast(String message, Context mContext) {
    Toast.makeText(mContext, message, Toast.LENGTH_SHORT).show();
  }

  @TargetApi(Build.VERSION_CODES.HONEYCOMB)
  private static void copytoClipboardHoney(Context mContext,
      String coupon_code) {
    android.content.ClipboardManager clipboard = (android.content.ClipboardManager) mContext
        .getSystemService(Context.CLIPBOARD_SERVICE);
    android.content.ClipData clip = android.content.ClipData.newPlainText(
        "coupon code", coupon_code);
    clipboard.setPrimaryClip(clip);
  }

  @SuppressWarnings("deprecation")
  private static void copytoClipboardHoneyLess(Context mContext,
      String coupon_code) {
    android.text.ClipboardManager clipboard = (android.text.ClipboardManager) mContext
        .getSystemService(Context.CLIPBOARD_SERVICE);
    clipboard.setText(coupon_code);
  }
}

Now set the custom Adapter to the InboxManager in your Application Class

Java
InboxManager.getInstance().setInboxAdapter(new CustomAdapter());

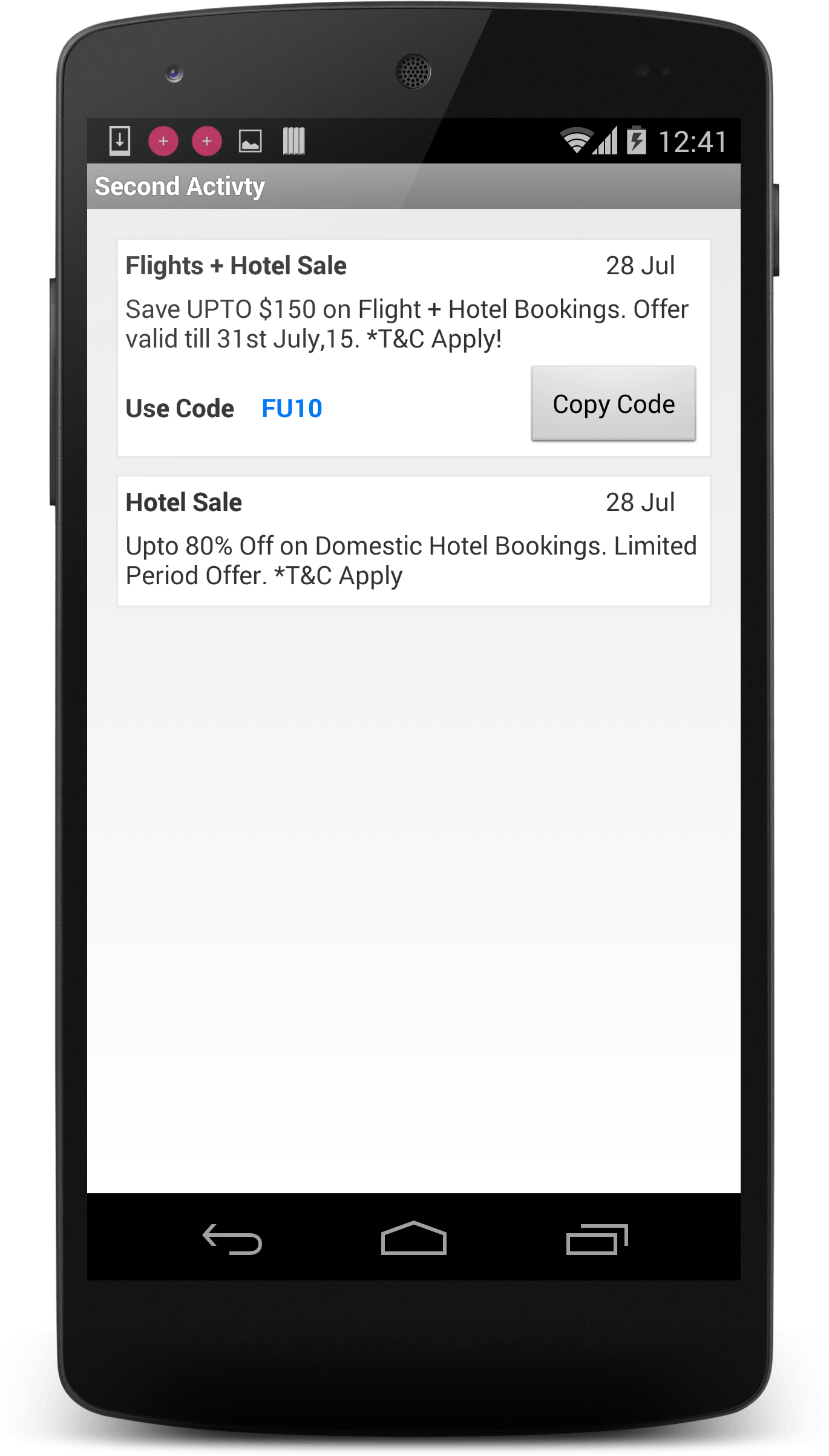

When done, it would look like


Customizing the Inbox Activity

  • One way is to customize the theme declaration
  • Another way is to embed the InboxFragment in your activity. It can be done by using the following code
XML
<fragment android:layout_width="match_parent"
      android:id="@+id/fragInbox"
      android:layout_height="match_parent"
      android:name="com.moengage.addon.inbox.InboxFragment" tools:layout="@layout/moe_inbox"/>

Disable Inbox Item Click

In case you want to disable clicks for the notification items stored in the inbox then add the following meta tag in the activity declaration.

XML
<activity
    android:name="com.moengage.addon.inbox.MoEInboxActivity"
    android:label="[ACTIVITY_NAME]"
    android:theme="@android:style/Theme.Light" >
    <meta-data
        android:name="CLICK_DISABLED"
        android:value="true" />
</activity>

Adding a parent activity to Inbox

In case you want to define the parent activity for the Inbox, then use the below code. Replace [PARENT_ACTIVITY_AME] with the name of the parent activity.

XML
<activity
    android:name="com.moengage.addon.inbox.MoEInboxActivity"
    android:label="[ACTIVITY_NAME]"
    android:parentActivityName="[PARENT_ACTIVITY_AME]" >
    <!-- Parent activity meta-data to support 4.0 and lower -->
    <meta-data
        android:name="android.support.PARENT_ACTIVITY"
        android:value="[PARENT_ACTIVITY_AME]" />
</activity>

Filtering the Notification Center

info

Note

This feature is available from add-on inbox 2.6 onwards along with main SDK version 5.3.21

You can filter the items displayed in Notification Center based on gcm_msg_tag passed as an additional parameter in the push payload. If no value for key: 'gcm_msg_tag' is passed, then it defaults to 'general'.

There are two ways of doing it:

  1. Passing Bundle Object to InboxFragment.java. Bundle object should contain key: 'InboxFragment.BUNDLE_EXTRA_FILTER' and value based on which you want to filter the Notification center. It will be one of the values passed for key 'gcm_msg_tag' in Push payload.

    Java
    Bundle args = new Bundle();
    args.putString(InboxFragment.BUNDLE_EXTRA_FILTER, "offers");
    InboxFragment fragment = new InboxFragment();
    fragment.setArguments(args);
  2. Invoking onQueryTextChanged(String msgTag) of InboxFragment. Where value for msgTag
    will be one of the values passed for key 'gcm_msg_tag' in Push payload.
    Java
    String msgTag = "offers";
    InboxFragment fragment = new InboxFragment();
    fragment.onQueryTextChanged(msgTag);

Deleting Notification from Notification Center

info

Note

This feature is available from add-on inbox 2.7 onwards along with main SDK version 5.3.27

You can delete a particular notification from the Notification Center by calling the deleteItem(Context,Long) method.

Java
//Get reference to adapter
InboxManager.InboxAdapter adapter = InboxManager.getInstance().getInboxAdapter();

//Get the id of Notification Item which got clicked
@Override public void onClick(View v) {
  InboxManager.ViewHolder holder = (InboxManager.ViewHolder) v.getTag();
  long id =holder.inboxMessage._id
//Call deleteItem method to remove Notification with above ID
    adapter.deleteItem(context,id);
}

Now, your Notification will get deleted from the Notification Center, and the Notification Center will get updated.

Self Handled Inbox

The below APIs can be used to build a custom inbox of your own.
These APIs are available only from the SDK version 5.3.0 and above.

Get all messages

Kotlin Java
// synchronous API should not be called on the main thread
MoEInboxHelper.getInstance().fetchAllMessages(context)
// asynchronous API
MoEInboxHelper.getInstance().fetchAllMessagesAsync(applicationContext, listener)

Get Unread Notifications Count

Kotlin Java
MoEInboxHelper.getInstance().getUnClickedMessagesCount()

Track Inbox Notification Clicks

Kotlin Java
MoEInboxHelper.getInstance().trackMessageClicked(context, inboxMessage)

Delete Inbox Message

Kotlin Java
MoEInboxHelper.getInstance().deleteMessage(context, inboxMessage)

Version Compatibility

Core SDK Version  Inbox-Core Version

11.0.03 and above

6.0.1 and above

11.0.00-11.0.02

6.0.0

10.0.00 - 10.6.02

5.0.0 - 5.3.0

Previous

Next

Was this article helpful?
0 out of 0 found this helpful

How can we improve this article?
