In-App Nativ

In-App Campaigns are custom views that you can send to a segment of users to show custom messages or give new offers or take to some specific pages. They can be created from your MoEngage account.

warning

SDK Version

Follow this doc only if you are using MoEngage-iOS-SDK version 8.2.0 and later. If you are using version 5.2.7 or less then follow the doc in this link.

SDK Installation

Install using CocoaPod

Integrate the MoEngageInApp framework by adding the dependency in the pod file as described.

pod 'MoEngageInApp','~> 3.2.0'

Now run pod install to install the framework

Install using Swift Package Manager

MoEngageInApp is supported through SPM from SDK version 3.2.0. To integrate use the following GitHub URL link and set the branch as master or version as 3.2.0 and above https://github.com/moengage/MoEngage-iOS-InApps.git

Manual Integration

info	Manual Integration: To integrate the `MoEngageInApp` SDK manually to your project follow this doc.

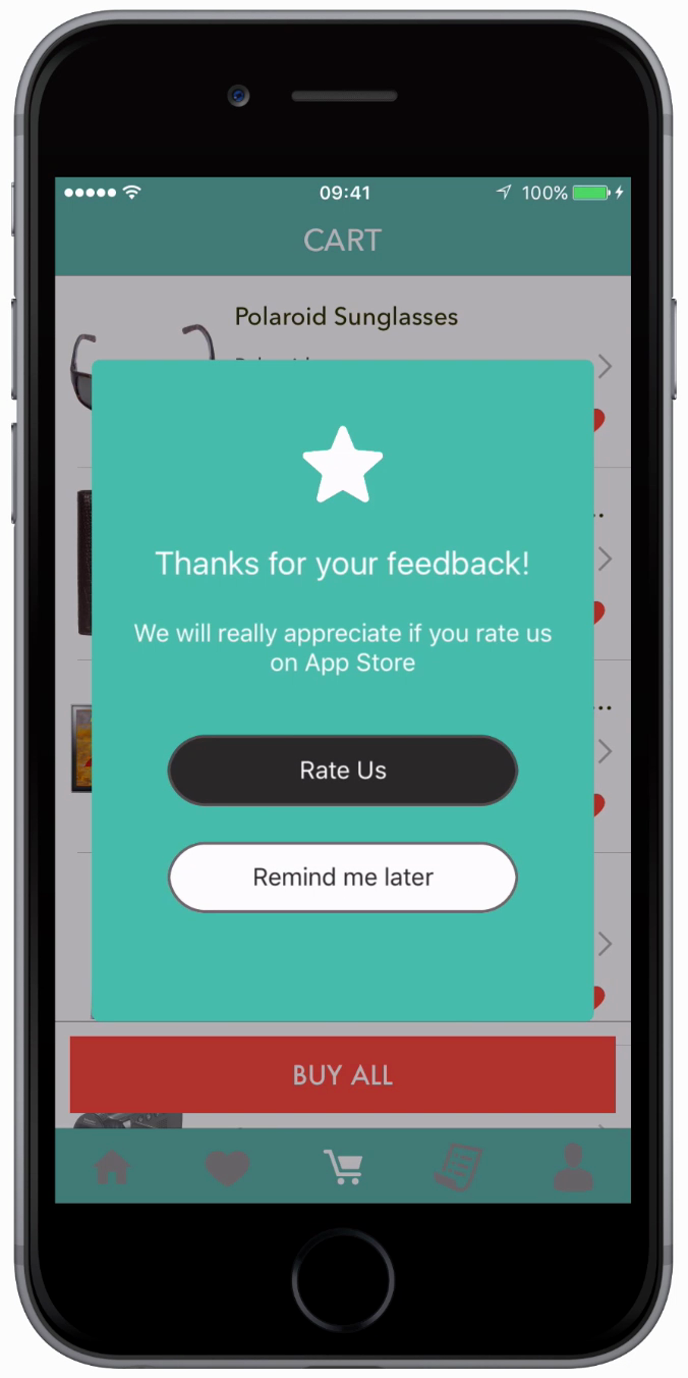

How to show In-App Message?

To use In-app Messaging, add the code below to the view controller(s) in which you want to show the In-app.

MOInApp.sharedInstance().showCampaign()

[[MOInApp sharedInstance] showInAppCampaign];

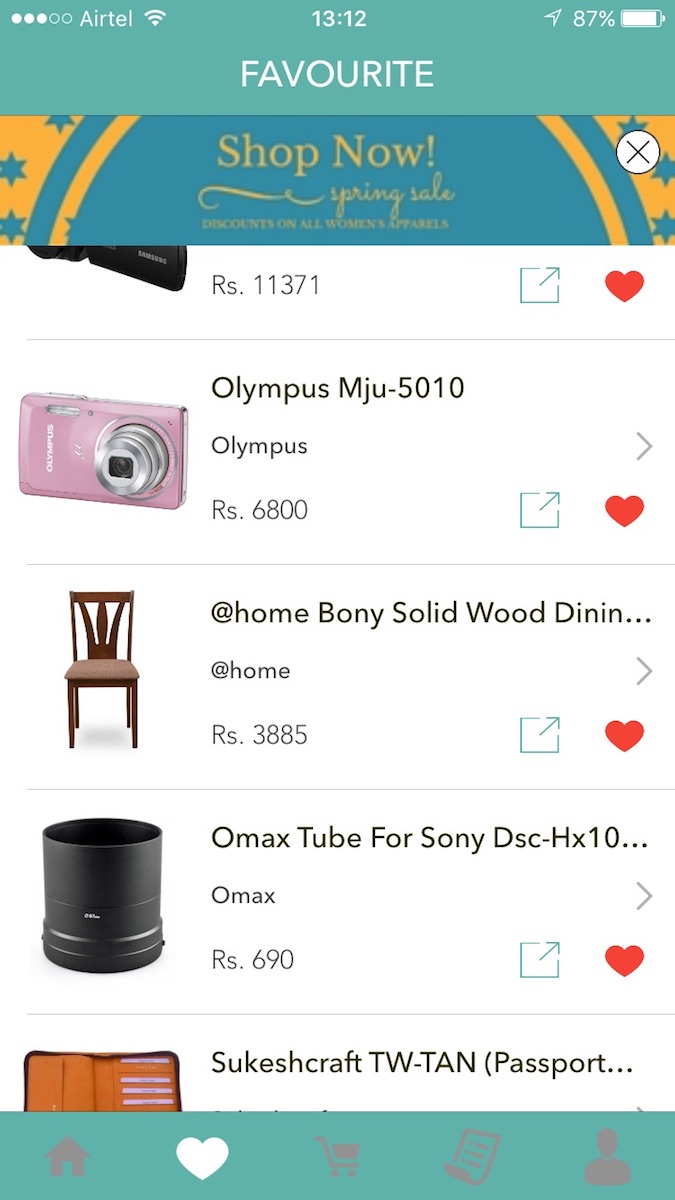

Nudges

Nudges are banner-like views. They can be embedded in the current view or floated over the existing view. There are two options using which you can show the nudges.

The first option, you can get the nudge and show it yourself. To get a nudge view, follow the code block below, and in this case, make sure to call the method to track impression for Nudge nudgeCampaignShown() as shown in the below example:

  // Get the nudge view using the method:
   MOInApp.sharedInstance().getNudgeView { nudgeView, campaignInfo, accountInfo in
            if let nudgeView = nudgeView {
                // Campaign Info
                print("Nudge inApp with Campaign ID\(campaignInfo?.campaign_id) and CampaignName\(campaignInfo?.campaign_name)");
                // Set Frame
                var frame = nudgeView.frame
                frame.origin.y = (UIScreen.main.bounds.size.height - frame.height)/2.0
                frame.origin.x = 0.0
                nudgeView.frame = frame

                // Attach the nudge view
                self.view.addSubview(nudgeView)

                // Track Impression
                MOInApp.sharedInstance().nudgeCampaignShown(withCampaignInfo: campaignInfo!);
            }
   }

[[MOInApp sharedInstance] getNudgeViewWithCompletionBlock:^(UIView * _Nullable nudgeView, MOInAppCampaign * _Nullable campaignInfo, MOAccountMeta * _Nullable accountMeta) {
        if (nudgeView && campaignInfo) {
            // Campaign Info
            NSLog(@"Nudge View with Campaign ID (%@) and Campaign Name(%@)",campaignInfo.campaign_id,campaignInfo.campaign_id);

            // Set Frame
            CGRect frame = nudgeView.frame;
            frame.origin.y = ([[UIScreen mainScreen] bounds].size.height - frame.size.height)/2.0;
            frame.origin.x = 0.0;
            nudgeView.frame = frame;

            // Attach Nudge View
            [self.view addSubview:nudgeView];

            // Track Impression
            [[MOInApp sharedInstance] nudgeCampaignShownWithCampaignInfo:campaignInfo];
        }
}];

Second option, you can let the SDK show the nudges. In this case, SDK can show Nudges in two positions (i.e, at top or bottom of the screen). Use the following code in the view controller(s) where you want SDK to show the nudges :

//For showing nudges at Top of the screen
 MOInApp.sharedInstance().showNudge(at: NudgePositionTop)

//OR

//For showing nudges at Bottom of the screen
MOInApp.sharedInstance().showNudge(at: NudgePositionBottom)

//For showing nudges at Top of the screen
[[MOInApp sharedInstance] showNudgeAtPosition:NudgePositionTop];

//OR

//For showing nudges at Bottom of the screen
[[MOInApp sharedInstance] showNudgeAtPosition:NudgePositionBottom];

InApp Callbacks

warning

Note

Make sure the class is configured with MOInAppNativDelegate to receive all the callbacks.

To observe callbacks whenever an inApp is shown, dismissed or clicked implement MOInAppNativDelegate. First set the delegate as shown below:

MOInApp.sharedInstance().setInAppDelegate(self)

[[MOInApp sharedInstance] setInAppDelegate:self];

Once the delegate is set you will receive the following callbacks:

// Called when an inApp is shown on the screen
func inAppShown(withCampaignInfo inappCampaign: MOInAppCampaign, for accountMeta: MOAccountMeta) {
   print("InApp shown callback for Campaign ID(\(inappCampaign.campaign_id)) and CampaignName(\(inappCampaign.campaign_name))")
   print("Account Meta AppID: \(accountMeta.appID)")
}

// Called when an inApp is dismissed by the user
func inAppDismissed(withCampaignInfo inappCampaign: MOInAppCampaign, for accountMeta: MOAccountMeta) {
    print("InApp dismissed callback for Campaign ID(\(inappCampaign.campaign_id)) and CampaignName(\(inappCampaign.campaign_name))")
    print("Account Meta AppID: \(accountMeta.appID)")
}

// Called when an inApp is clicked by the user, and it has been configured with a custom action
func inAppClicked(withCampaignInfo inappCampaign: MOInAppCampaign, andCustomActionInfo customAction: MOInAppAction, for accountMeta: MOAccountMeta) {
     print("InApp Clicked with Campaign ID \(inappCampaign.campaign_id)")
     print("Custom Actions Key Value Pairs: \(customAction.keyValuePairs)")
}

// Called when an inApp is clicked by the user, and it has been configured with a navigation action
func inAppClicked(withCampaignInfo inappCampaign: MOInAppCampaign, andNavigationActionInfo navigationAction: MOInAppAction, for accountMeta: MOAccountMeta) {
     print("InApp Clicked with Campaign ID \(inappCampaign.campaign_id)")
     print("Navigation Action Screen Name \(navigationAction.screenName) Key Value Pairs: \((navigationAction.keyValuePairs))")
}

// Called when an inApp is shown on the screen
-(void)inAppShownWithCampaignInfo:(MOInAppCampaign *)inappCampaign forAccountMeta:(MOAccountMeta *)accountMeta {
    NSLog(@"InApp Shown with Campaign ID %@",inappCampaign.campaign_id);
}

// Called when an inApp is dismissed by the user
-(void)inAppDismissedWithCampaignInfo:(MOInAppCampaign *)inappCampaign forAccountMeta:(MOAccountMeta *)accountMeta {
    NSLog(@"InApp Dismissed with Campaign ID %@",inappCampaign.campaign_id);
}

// Called when an inApp is clicked by the user, and it has been configured with a custom action
-(void)inAppClickedWithCampaignInfo:(MOInAppCampaign *)inappCampaign andCustomActionInfo:(MOInAppAction *)customAction forAccountMeta:(MOAccountMeta *)accountMeta  {
    NSLog(@"InApp Clicked with Campaign ID %@",inappCampaign.campaign_id);
    NSLog(@"Custom Action Key Value Pairs: %@", customAction.screenName);
}

// Called when an inApp is clicked by the user, and it has been configured with a navigation action
- (void)inAppClickedWithCampaignInfo:(MOInAppCampaign *)inappCampaign andNavigationActionInfo:(MOInAppAction *)navigationAction forAccountMeta:(MOAccountMeta *)accountMeta {
    NSLog(@"InApp Clicked with Campaign ID %@",inappCampaign.campaign_id);
    NSLog(@"Navigation Action Screen Name %@\n Key Value Pairs: %@", navigationAction.screenName,navigationAction.keyValuePairs);
}

Context-Based InApps

We have introduced context-based InApps with SDK version 6.0.0. While creating InApp campaigns you can set the contexts OR tags to the campaign. SDK will check with the current context set in the App and show the inApp only when a current set context matches the campaign context.

Set Current Context:

To set the current context for the InApp module use setCurrentInAppContexts() method as shown below:

MOInApp.sharedInstance().setCurrentInAppContexts(["Home","CategoriesScreen"])

[[MOInApp sharedInstance] setCurrentInAppContexts:@[@"Home",@"CategoriesScreen"]];

Reset Context:

To reset the current context for the InApp module call invalidateInAppContexts() method:

MOInApp.sharedInstance().invalidateInAppContexts()

[[MOInApp sharedInstance] invalidateInAppContexts];

Disable In-Apps in ViewController

If you don't want to show InApp messages in a particular ViewController, use blockInAppInViewController: method as shown below:

//For not showing in apps in viewController
MOInApp.sharedInstance().blockInApp(in: viewController);

//For not showing in apps in viewController
[[MOInApp sharedInstance] blockInAppInViewController:viewController];

Disabling In-Apps for App

If you do not wish to use InApp messaging, set the property disableInApps. The property has to be set before the initial call.

MOInApp.sharedInstance().disableInApps()

[[MOInApp sharedInstance] disableInApps];

Self handled In-Apps

Self handled In-Apps are not shown by the SDK. While creating the campaign, a json payload has to be provided. The same payload will be provided in case of General InApp Campaign by the SDK on calling getSelfHandledInApp method.

MOInApp.sharedInstance().getSelfHandledInApp { (campaignInfo, accountMeta) in
      if let campaignInfo = campaignInfo{ print("Self-Hanled InApp Content \(campaignInfo.campaignContent)")
          // Update UI with Self Handled InApp Content

      } else{
          print("No Self Handled campaign available")

      }
}

[[MOInApp sharedInstance] getSelfHandledInAppWithCompletionBlock:^(MOInAppSelfHandledCampaign * _Nullable campaignInfo, MOAccountMeta * _Nullable accountMeta) {
     if (campaignInfo != nil) {
         NSLog(@"Self Handled inApp content : %@", campaignInfo.campaignContent);
          // Update UI using the self-handled content
     }
     else{
          NSLog(@"Self-Handled InApp not available");
     }
}];

Getting Self Handled InApp payload in case of Smart Trigger:

For getting the Self Handled InApp payload in case of Smart Trigger, use the selfHandledInAppTriggered delegate method :

// This method is called when an event triggers an in-app from the server, which is of type self handled.
func selfHandledInAppTriggered(withInfo inappCampaign: MOInAppSelfHandledCampaign, for accountMeta: MOAccountMeta) {
    print("Self Handled InApp Triggered with info:\nCampaign ID:\(inappCampaign.campaign_id) \nContent: \(inappCampaign.campaignContent)")
}

// This method is called when an event triggers an in-app from the server, which is of type self handled.
- (void)selfHandledInAppTriggeredWithInfo:(MOInAppSelfHandledCampaign *)inappCampaign forAccountMeta:(MOAccountMeta *)accountMeta {
    NSLog(@"Self Handled InApp Triggered with info:\nCampaign ID: %@ \nContent: %@",inappCampaign.campaign_id, inappCampaign.campaignContent);
}

info	Note The above method will also be called when trying to test the self-handled campaign through test push.

Tracking InApp Shown And Clicked:

For tracking In-App shown for self handled in-apps use selfHandledShown method and provide campaign instance as a parameter:

// Call this method when you show the self handled in-app so we can update impressions.
MOInApp.sharedInstance().selfHandledShown(withCampaignInfo: cmpInfo)

// Call this method when you show the self handled in-app so we can update impressions.
[[MOInApp sharedInstance] selfHandledShownWithCampaignInfo:campInfo];

For tracking InApp Clicked information for stats, call the following methods :


// Call this method to track if self handled in app widget(other than Primary Widget) is clicked.
MOInApp.sharedInstance().selfHandledClicked(withCampaignInfo: cmpInfo)

// Call this method to track dismiss actions on the inApp.
MOInApp.sharedInstance().selfHandledDismissed(withCampaignInfo: cmpInfo)


// Call this method to track if self handled in app widget(other than Primary Widget) is clicked.
[[MOInApp sharedInstance] selfHandledClickedWithCampaignInfo:campInfo];

// Call this method to track dismiss actions on the inApp.
[[MOInApp sharedInstance] selfHandledDismissedWithCampaignInfo:campInfo];

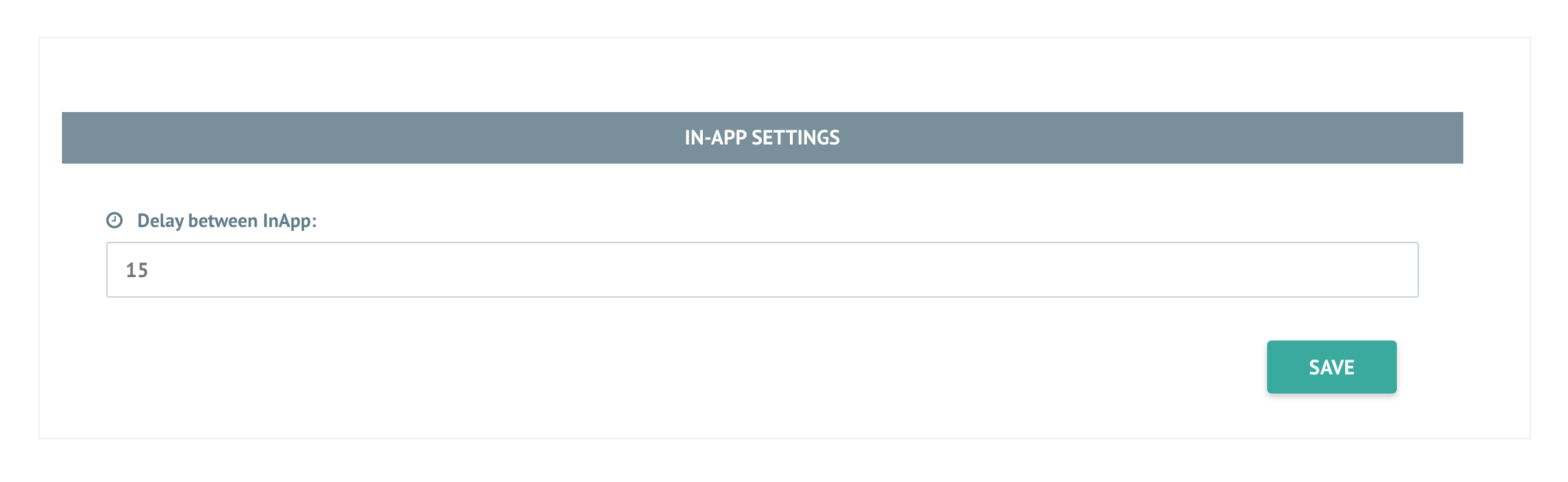

Update Delay between In-Apps

You can also change the minimum time delay between two in-apps. By default it is 15 mins.
Go to Settings in the MoEngage dashboard. Go to In-App NATIV Settings Menu.

There's a field Delay between InApp:. Change that to the desired delay.


In-App Messaging Rules

We use the following rules while showing the In-App:

Preconditions for inApp to work:

If InApp Backend Sync was successful in the current session or not.
Check if InApp is disabled on the current screen.

Following are checked for each campaign in the list of active campaigns(sorted according to priority and Last Updated Time)

Check Global Delay has lapsed, skip this if Ignore Global Delay set for the campaign.
Check if the campaign has expired
Display Rules
Check Show Only in Screen
Check with current contexts
Delivery Controls
Persistence Check(If primary action of InApp is done but still want to show the inApp)
Check if the campaign has been shown Max Times
Check if the campaign level delay has crossed.
Check Device Orientation is Portrait for Native InApp and required Orientation for HTML InApp(as selected during campaign creation).

The first campaign satisfying all the rules is shown to the user.
