Overview

iOS Live Activities display your app's most current data as real-time, interactive updates on the iPhone Lock Screen and in the Dynamic Island. This allows users to track events like sports scores, order status, or flight updates without opening your app, significantly boosting engagement and user experience.

Implementing a Live Activity

This section covers the client-side setup required within your Xcode project.

Step 1: Add a Widget Extension

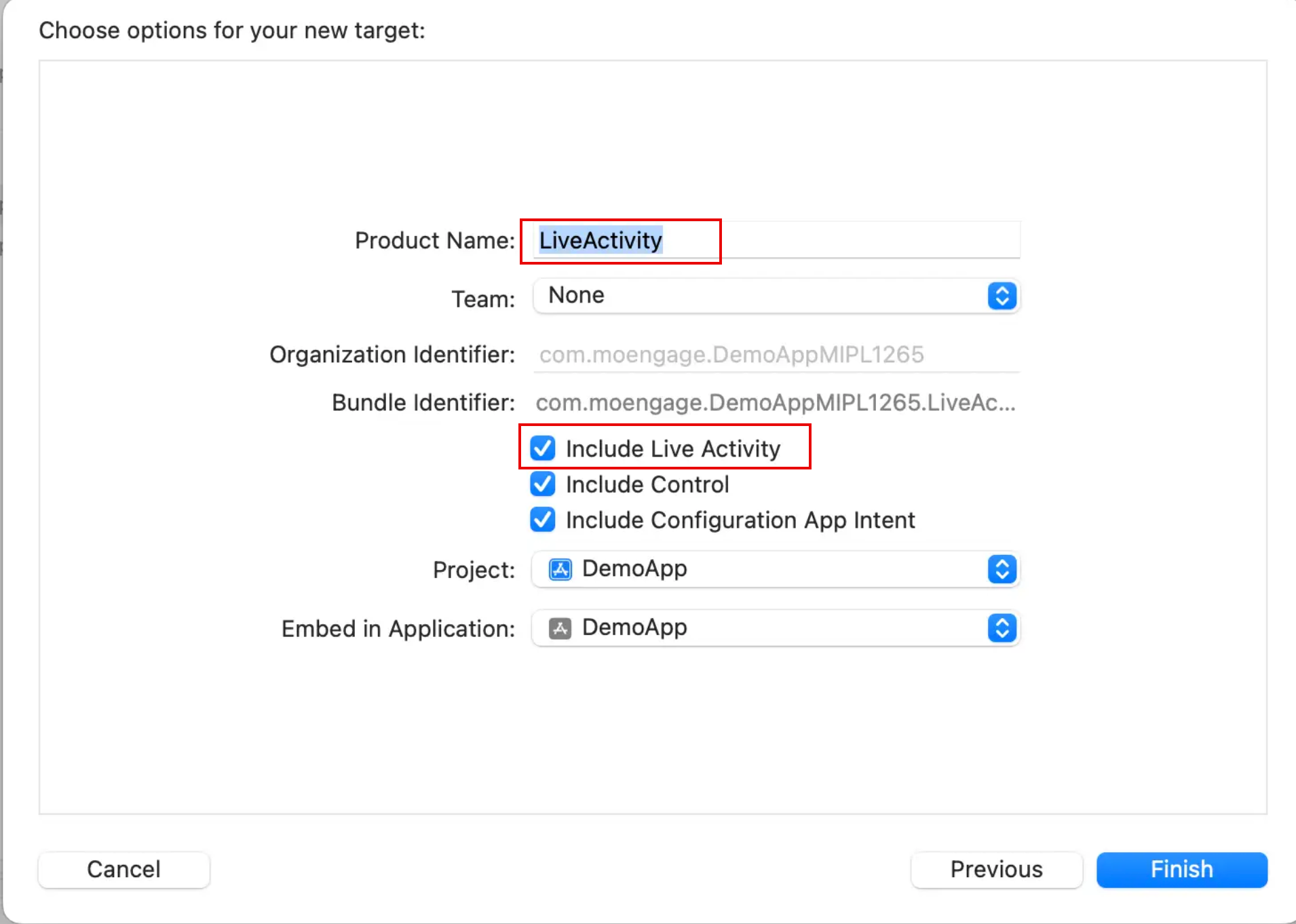

1. In Xcode, navigate to File > New > Target.
2. Select Widget Extension and click Next.

3. Enter a product name for your widget.
4. Select the Include Live Activities checkbox.

5. Click Finish.

Step 2: Configure App's Info.plist

Add Live Activities support to your main app's Info.plist.

<key>NSSupportsLiveActivities</key>
<true/>

Step 3: MoEngageLiveActivity integration

Install using CocoaPod

To integrate the MoEngageLiveActivity framework, add the following dependency to your Podfile:

target 'MoETest' do
  use_frameworks!

  # Pods for app target
  pod 'MoEngage-iOS-SDK' # specify version constraint
  pod 'MoEngage-iOS-SDK/LiveActivity'

  target 'LiveActivity' do
    use_frameworks!
    inherit! :search_paths
    # Pods for live activity extension target
    pod 'MoEngage-iOS-SDK/LiveActivity'
  end
end

Install using Swift Package Manager

MoEngageLiveActivity framework is supported through SPM from SDK version 10.02.1 To integrate, use the GitHub url https://github.com/moengage/apple-sdk.git and set the branch as master or required version.

Step 4: Define the Live Activity Attributes

In the Swift file generated for your widget extension, define the data structure for your Live Activity.

1. Configure ActivityAttributes: Create a struct that conforms to ActivityAttributes. This struct will contain:
   • Static Data: Attributes that are set once and do not change.
   • ContentState: A nested struct for dynamic data that will be updated in real-time.

     Swift

     import Foundation
     import ActivityKit
     import WidgetKit
     import SwiftUI

     struct FootballActivityAttributes: ActivityAttributes {
         public struct ContentState: Codable, Hashable {
             // Dynamic stateful properties about your activity go here!
             var teamOneScore: Int
             var teamTwoScore: Int
         }

         // Fixed non-changing properties about your activity go here!
         var team1Name: String
         var team2Name: String
     }


2. When creating ActivityConfiguration, use MoEngageActivityAttributes<FootballActivityAttributes> instead of FootballActivityAttributes as your ActivityAttributes type.
3. Track widget clicks by configuring the deeplink and widget ID with the moengageWidgetClickURL API.

   Swift

   import ActivityKit
   import WidgetKit
   import SwiftUI
   import MoEngageLiveActivity

   struct FootballActivityWidget: Widget {
       var body: some WidgetConfiguration {
           ActivityConfiguration(for: MoEngageActivityAttributes<FootballActivityAttributes>.self) { context in
               // Lock screen/banner UI goes here
               VStack(spacing: 12) {
                   // UI elements
               }
               .moengageWidgetClickURL(URL(string: "moeapp://game"), context: context, widgetId: 2)

           } dynamicIsland: { context in
               DynamicIsland {
                   // Expanded UI goes here
               } compactLeading: {
                   // Compact Leading UI goes here
               } compactTrailing: {
                   // Compact Trailing UI goes here
               } minimal: {
                   // Minimal UI goes here
               }
               .moengageWidgetClickURL(URL(string: "moeapp://game"), context: context, widgetId: 1)
           }
       }
   }





   info	Information MoEngage recommends that you acquaint yourself with Apple's Live Activities prerequisites and limitations, as these are distinct from those of MoEngage.

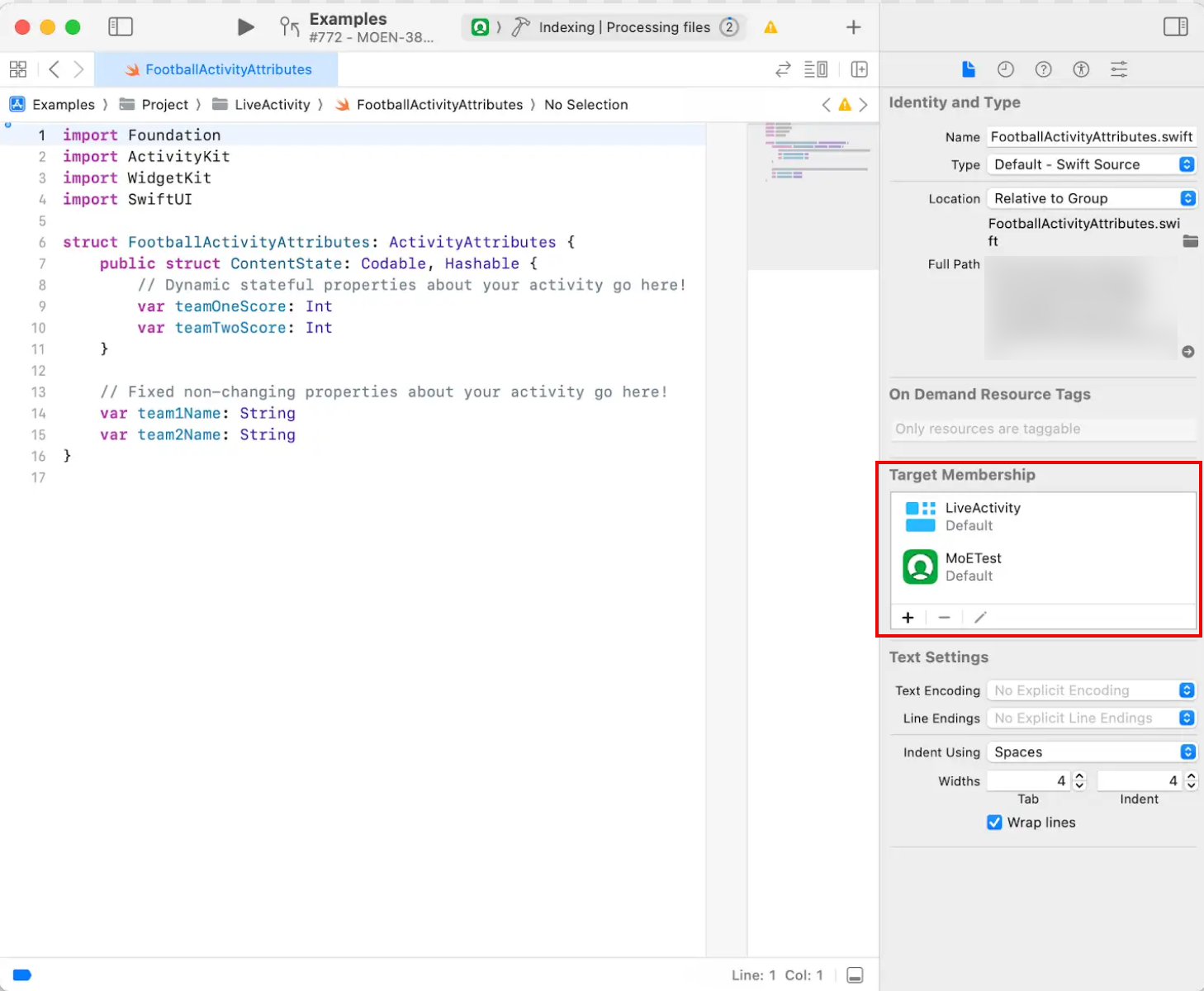

4. Ensure Target Membership: Make your ActivityAttributes struct accessible to your main app target.
   1. Select the Swift file where you defined your ActivityAttributes.
   2. Open the File Inspector (Option + Command + 1).
   3. In the Target Membership section, check the box for your main app target.


Managing the Live Activity Lifecycle

Once your app is configured, you can start, update, and end Live Activities using a combination of local app code and MoEngage APIs.

Step 5: Create a Live Activity Campaign (One-Time Setup)

Before you can start a Live Activity, you must first create a campaign on the MoEngage platform. This one-time API call defines the campaign's properties, such as the target audience and conversion goals.

Upon successful creation, the API returns a channel_id. This ID is essential for two reasons:

• It identifies the campaign you want to start remotely for a target segment.
• It allows users outside the original target segment to start the same Live Activity locally from within your app (e.g., by tapping a button).

For more information, refer here.

Step 6: Start a Live Activity

A Live Activity instance can be started remotely via a push or locally from the app.

Push-to-Start (Remote)

Start an activity for your defined audience using a push notification. For more information, refer here.

Click-to-Start (Local)

Start an activity from within the app, triggered by a user action.

Get Live Activity data from the createAttributes(withCampaign:completion:) or createAttributes(withCampaign:) async SDK APIs by combining your application's ActivityAttributes data with mandatory MoEngage metadata (retrieved from your server). Use Apple's Activity.request() method with channel_id (retrieved from your server) to start Live Activity. This links the locally started activity to your campaign.

import MoEngageLiveActivity

guard #available(iOS 18, *) else { return }

guard let result = await MoEngageSDKLiveActivity.createAttributes(
    withCampaign: MoEngageSDKLiveActivity.Campaign(
        campaignId: "Your Campaign Id", campaignName: "Your Campaign Name",
        deliveryType: "Broadcast Live Activity",
        attributeType: "\(FootballActivityAttributes.self)",
        instanceId: "Your Instance Id",
        appAttributes: FootballActivityAttributes(team1Name: "Chiefs", team2Name: "Bills"),
        appContent: FootballActivityAttributes.ContentState(teamOneScore: 0, teamTwoScore: 0)
    )
) else { return }

do {
    let activity = try MoEngageActivity.request(
        attributes: result.attributes,
        content: .init(
            state: result.content, staleDate: .distantFuture,
            relevanceScore: 10
        ),
        pushType: .channel("Your channel Id"), style: .standard
    )
    // Track started event
    MoEngageSDKLiveActivity.trackStarted(activity: activity)
} catch {
    // log error
}

Step 7: Update a Live Activity

Update an activity for your defined audience using a push notification. For more information, refer here.

Step 8: End a Live Activity

A Live Activity can end through user dismissal, a system timeout, or a command from your server. For more information, refer here.
