Search In-app Template API

The Search In-app Template API can be used to look up the In-app templates created in your MoEngage account.

API Endpoint

POST https://api-0X.moengage.com/v1.0/custom-templates/inapp/search

Each customer is hosted on a different data center; you can find your data center number (value of X) by checking the data center and API endpoint mapping page.

Authentication

The API request will be authenticated through Basic Authentication. Basic Authentication sends a Base64-encoded string containing your username and password with every API request. It encodes a 'username: password' string in Base64 and appends the encoded string with 'Basic '. This string is included in the authorization header as shown below:

{"Authorization": "Basic bmF2ZWVua3VtYXI6bW9lbmdhZ2U="}

Follow the steps below to obtain the username and password details from the MoEngage Dashboard:

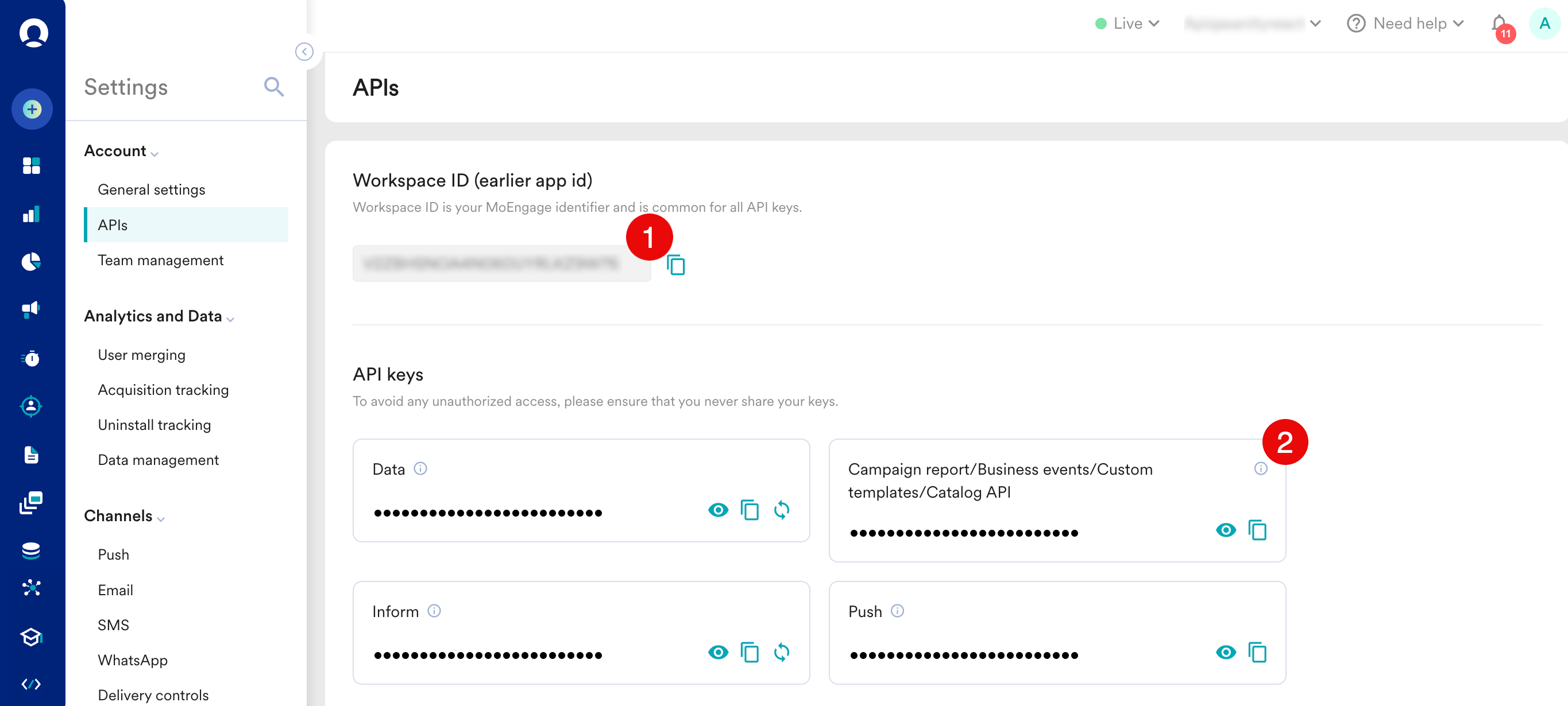

API authentication.png

Navigate to Settings > Account > APIs.
Copy the following details:
- Username: Under Workspace ID (earlier App ID), click the copy icon to copy the username.
- Password: In the API keys section, click the copy icon in the Campaign report/Business events/Custom templates/Catalog API tile to copy the API key.
Use the above details to authenticate the API requests.

Request Headers

Key	Required	Sample Values	Description
Content-Type	Required	{"Content-Type": "application/json"}	Set the Content-Type header to application/json.
Authorization	Required	{"Authorization": "Basic bmF2ZWVua3VtYXI6bW9lbmdhZ2U=="}	This authentication parameter, used for access control, must be passed in the request. To generate the authentication header, refer to Authentication.

Request Body

Key	Data Type	Required	Description
page	Integer	Optional	This field contains the index of the pages to be returned in the search result. Example: 2
entries	Integer	Optional	This field contains the number of entries per page in the search result. Example: 10
template_name	String	Optional	This field indicates the name of the template. When this value is specified, the template that matches the name specified in this field will be returned. Example: “test_template”
template_source	List<String>	Optional	This field indicates the template source that created the template. For example: ["API", "MOENGAGE"]. When specified, the templates whose source matches that specified in this list will be returned. Example: [“API”, “MOENGAGE”]
template_type	List<String>	Optional	This field indicates whether the template is a custom one or a pre-built one. Allowed values: CUSTOM, PRE_BUILT. When specified, the templates whose template type matches that specified in this list will be returned. Example: ["CUSTOM", "PRE_BUILT"]
created_by	List<String>	Optional	This field indicates the user who created the template. When specified, the templates for which the created_by user information matches that specified in this list will be returned. Example: ["user1@moengage.com", "user2@moengage.com"]
updated_by	List<String>	Optional	This field indicates the user who updated the template. When specified, the templates for which the updated_by user information matches that specified in this list will be returned. Example: ["user1@moengage.com", "user2@moengage.com"]
sort_params	List<Map<String, String>>	Optional	Sort the templates by multiple fields in ASCENDING or DESCENDING order: template_name, last_modified_date, last_modified_by Example: [ {"template_name": "ASCENDING"}, {"last_modified_date": "DESCENDING"} ] First, ordering preference will be done according to template_name in the ASC order, followed by last_modified_date in the DESC order.
template_ids	List<Map<string, it>>	Optional	Search multiple templates using Pair of external_template_id version Example: [ { "external_template_id": "1234", "version": 1 }, ]

info	Information If the request body is passed empty, then all templates will be returned. Here, the preview_image field will be generated by MoEngage for the HTML template payload.

Response

Status	Key	Data Type	Description
Success	data external_template_id version basic_details created_by created_at updated_by updated_at	String	This field contains all the details of the template searched, such as the meta info, template ID, template version, payload, date and time the template was created or updated, and the user attribute of the user who created or updated the template.
Failure	error_code	String	Each error code is unique and serves as a shorthand representation for the type of error. It provides a quick reference that can be used to diagnose, troubleshoot, and address the problem based on a predefined set of error conditions.
Failure	message	String	Along with the error code, a detailed message is also provided in the response, describing the specifics of the request failure and the nature of the error.

Response Codes

Status Code	Request State	Description
200	Success	The template was searched successfully.
400	Bad Request	This response is returned when the required parameters are missing from the request or when the provided parameters are invalid.
429	Rate Limit Breach	This response is returned when the number of requests per minute has exceeded the rate limit.
5xx	Internal Server Error	This response is returned when the system runs into an unexpected error.

Sample cURL Request

curl --location ' https://api-0X.moengage.com/v1.0/custom-templates/inapp/search' \

--header 'Content-Type: application/json' \

--header 'Authorization: Basic Q000RDFMWk4ySU1KTkJZOVVMWEFVNzNEOlIxWk1PS0ABCDEFGH==' \

--data-raw '{

    "entries": 4,

    "page": 2,

    "template_name": "test1",

    "external_template_ids": [{

        "external_template_id": "904c31c4-c532-4d86-a212-963c697a1bbe",

        "version": 1

        }],

    "template_type": ["CUSTOM", "PRE_BUILT"],

    "template_source": ["MOENGAGE", "API"],

    "updated_by": ["test-1@moengage.com", "test@ABC.com"],

    "created_by": ["test-1@moengage.com", "test@ABC.com"],

    "sort_params": [

        {

          "template_name": "ASCENDING"

        },

        {

          "last_modified_date": "DESCENDING"

        }

      ]

}'

Sample Response

{

  "data": [

      {

        "meta_info": {

            "template_id": "1234567890123",

            "template_name": "NAME_OF_THE_TEMPLATE",

            "template_version": "1",

            "created_by": "test@moengage.com",

            "channel": "INAPP",

            "template_source": "API",

            "template_type": "CUSTOM"

        },

        "external_template_id": "4a1afbc5-4c31-4f19-8c23-793e27af01aa",

        "version": 1,

        "basic_details": {

            "payload": "<!doctype html>\n<html lang=\'en\'>\n <head>\n <title>Bootstrap demo</title>\n <link href='' rel='stylesheet'>\n </head>\n <body>\n <h1>Hello, world!</h1>\n <script src='https://cdn.jsdelivr.net></script> \n </body>\n</html>",

            "preview_image": "https://pbs.twimg.com/profile_images/10ydbKG1.jpg",

            "inapp_template_type": "INAPP_HTML"

          },

        "created_by": "test@moengage.com",

        "created_at": "2023-08-01T07:58:53.880000",

        "updated_by": "test@moengage.com",

        "updated_at": "2023-08-01T07:58:53.880000"

      }

    ]

}

{

    "error": {

      "code": "400 Bad Request",

      "message": "Validation failed because of invalid request data",

      "details": [

          {

            "code": "MissingValue",

            "target": "external_template_ids",

            "message": "external_template_id or version is missing in external_template_ids."

          }

      ],

      "request_id": "npmQrbNE"

    }

}
