InApp NATIV 7.x.x

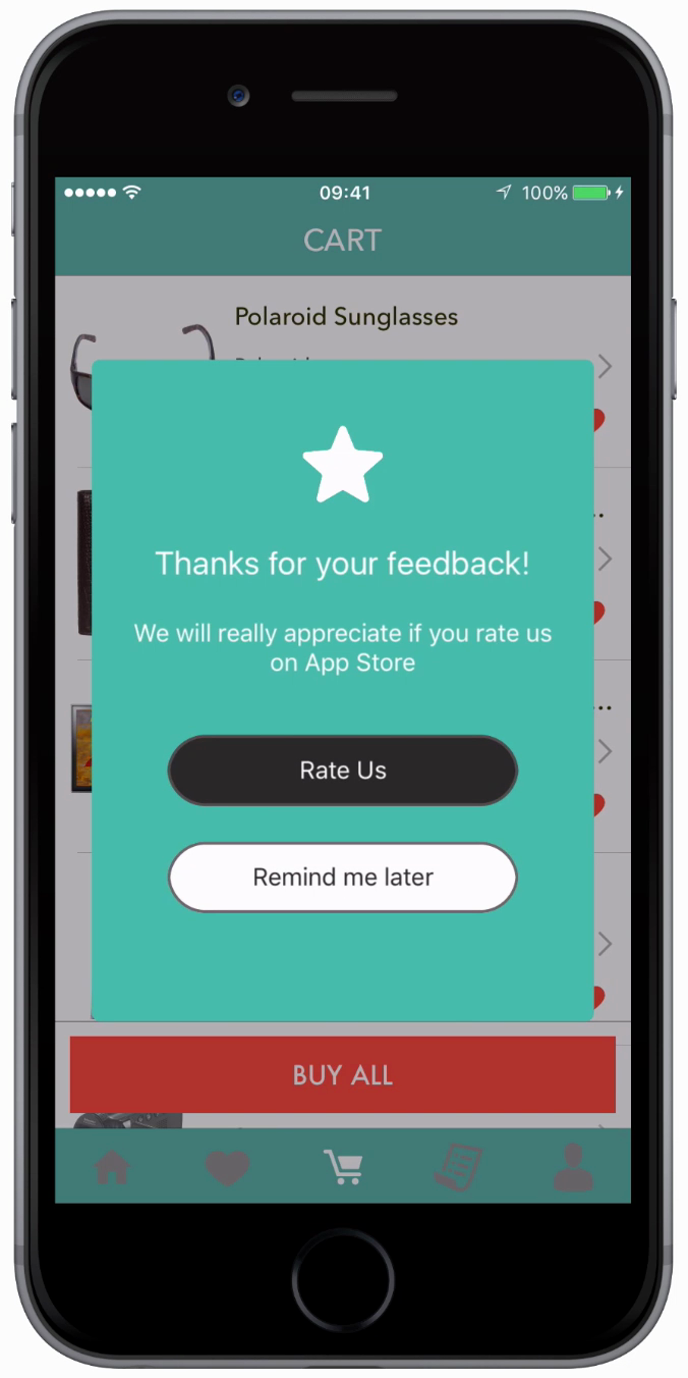

In-App Messaging is custom views that you can send to a segment of users to show custom messages or give new offers or take to some specific pages. They can be created from your MoEngage account.


Installing Android Dependency

Add the following dependency in the android/app/build.gradle file.

dependencies {
 ...
  implementation("com.moengage:inapp:$sdkVersion")
}

replace $sdkVersion with the appropriate SDK version

Requirements for displaying images and GIFs in InApp

Starting InApp version 7.0.0, SDK requires Glide to show images and GIFs in the in-apps. You need to add the below dependency in your build.gradle file.

dependencies {
 ...
 implementation("com.github.bumptech.glide:glide:4.9.0")
}

info	Note Additional dependency installation is not required for iOS.

Show InApp

Call the below API to show an inApp campaign on a screen. You will have to handle the redirection of the user when they click on the inApps unless it's a rich landing navigation.

import 'package:moengage_flutter/moengage_flutter.dart';
final MoEngageFlutter _moengagePlugin = MoEngageFlutter(YOUR_APP_ID);
_moengagePlugin.initialise();
_moengagePlugin.showInApp();

Display Nudges

Starting with moengage_flutter version 7.0.0, MoEngage InApp SDK supports displaying Non-Intrusive nudges. This API is supported only in Android & IOS. You will have to handle the redirection of the user when they click on the inApps unless it's a rich landing navigation.

To show a Nudge InApp Campaign call showNudge()

import 'package:moengage_flutter/moengage_flutter.dart';
final MoEngageFlutter _moengagePlugin = MoEngageFlutter(YOUR_APP_ID);

_moengagePlugin.showNudge(); // Display Nudge on any available position
_moengagePlugin.showNudge(position: MoEngageNudgePosition.top); // Display Nudge on the specific position

InApp/Nudge Redirection default behavior

On clicking an Inapp or Nudge, MoEngage SDKs will handle only rich landing navigation redirection.

For the screen name and deep link redirection, your app code should redirect the user to the right screen or deep link. To handle the screen name and deep link redirection, you must implement inapp click callback methods. MoEngage SDK will just pass the inapp payload to this call back code. Implementation steps are mentioned in the InApp callback section of the Integration.

Self Handled InApps

Self-handled In Apps are messages that are delivered by the SDK to the application, and the application builds the UI using the delivered payload by the SDK. To get the self-handled in-app, use the below API.

import 'package:moengage_flutter/moengage_flutter.dart';
final MoEngageFlutter _moengagePlugin = MoEngageFlutter(YOUR_APP_ID);
_moengagePlugin.getSelfHandledInApp();

To get the self-handled campaign, register for the callback as shown below.

Tracking Statistics for Self-Handled In-Apps

The application must notify MoEngage SDK whenever the In-App messages are displayed, clicked on, or dismissed, as the application controls these actions. The following methods are called to notify the SDK. The data object provided to the application in the callback for self-handled in-app should be passed as a parameter to the following APIs.

import 'package:moengage_flutter/moengage_flutter.dart';
final MoEngageFlutter _moengagePlugin = MoEngageFlutter(YOUR_APP_ID);
// call this method to notify campaign was shown.
_moengagePlugin.selfHandledShown(message);
// call this method to noftify campaign was clicked.
_moengagePlugin.selfHandledClicked(message);
// call this method to notify campaign was dismissed.
_moengagePlugin.selfHandledDismissed(message);

InApp Callbacks

We provide callbacks for in-app shown, in-app clicked, in-app dismissed, and self-Handled in-app available events. You can register for the same as shown below.

import 'package:moengage_flutter/moengage_flutter.dart';

  void _onInAppClick(ClickData message) {
    print("This is a inapp click callback from native to flutter. Payload " +
        message.toString());
  }

  void _onInAppShown(InAppData message) {
    print("This is a callback on inapp shown from native to flutter. Payload " +
        message.toString());
  }

  void _onInAppDismiss(InAppData message) {
    print("This is a callback on inapp dismiss from native to flutter. Payload " +
        message.toString());
  }

  void _onInAppSelfHandle(SelfHandledCampaignData? message) {
      if (message == null) {
      debugPrint('$tag _onInAppSelfHandle(): SelfHandled InApp Data is Null');
      return;
      }
    print("This is a callback on inapp self handle from native to flutter. Payload " +
        message.toString());
  }

final MoEngageFlutter _moengagePlugin = MoEngageFlutter(YOUR_APP_ID);
//Register for callbacks
_moengagePlugin.setInAppClickHandler(_onInAppClick);
_moengagePlugin.setInAppShownCallbackHandler(_onInAppShown);
_moengagePlugin.setInAppDismissedCallbackHandler(_onInAppDismiss);
_moengagePlugin.setSelfHandledInAppHandler(_onInAppSelfHandle);

//NOTE: set up callbacks before initialise()
_moengagePlugin.initialise();

Contextual InApp

You can restrict the in-apps based on the user's context in the application apart from restricting InApp campaigns on a specific screen. To set the user's context in the application use setCurrentContext() API as shown below.

Set Context

Call the below method to set the context in the initState() method of the widget before calling showInApp().

import 'package:moengage_flutter/moengage_flutter.dart';
final MoEngageFlutter _moengagePlugin = MoEngageFlutter(YOUR_APP_ID);
_moengagePlugin.setCurrentContext(['C1', 'C2']);

Reset Context

Once the user is moving out of the context use the resetCurrentContext() API to reset/clear the existing context.

import 'package:moengage_flutter/moengage_flutter.dart';
final MoEngageFlutter _moengagePlugin = MoEngageFlutter(YOUR_APP_ID);
_moengagePlugin.resetCurrentContext();

InApp Payload

InApp Data will be received in the below format:

class InAppData {
  /// Native platform from which the callback was triggered.
  Platforms platform;

  //Account Data
  AccountMeta accountMeta;

  ///In-App Campaign Data
  CampaignData campaignData;
}

class CampaignData {
  /// Unique identifier for each campaign.
  String campaignId;

  ///Campaign Name
  String campaignName;
  ...
}

class ClickData {
  /// Native platform from which the callback was triggered.
  Platforms platform;

  /// Account Data
  AccountMeta accountMeta;

  /// In-App Campaign Data
  CampaignData campaignData;

  /// Action data with type navigation/custom
  Action action;
}

class NavigationAction extends Action {
  /// Type of Navigation action.
  /// Possible value deep_linking or screen
  NavigationType navigationType;

  /// Deeplink Url or the Screen Name used for the action.
  String navigationUrl;

  /// [Map] of Key-Value pairs entered on the MoEngage Platform for
  /// navigation action of the campaign.
  Map<String, dynamic> keyValuePairs;
}

class CustomAction extends Action {
  ///Key-Value Pair entered on the MoEngage Platform during campaign creation.
  Map<String, dynamic> keyValuePairs;
}

class SelfHandledCampaignData {
  /// Native platform from which the callback was triggered.
  Platforms platform;

  /// Account Data
  AccountMeta accountMeta;

  /// In-App Campaign Data
  CampaignData campaignData;

  //Self handled data
  SelfHandledCampaign campaign;
}

class SelfHandledCampaign {
  /// Self handled campaign payload.
  String payload;

  /// Interval after which in-app should be dismissed, unit - Seconds
  int dismissInterval;
}

Handling Orientation Change

info	Note This is only for the Android platform

Starting SDK version 4.1.0 in-apps are supported in both portrait and landscape modes.
SDK has to be notified when the device orientation changes for SDK to handle in-app display.

There are two ways to do it:

Add the API call in the Android native part of your app
Call MoEngage plugin's onOrientationChanged()

Add the API call in the Android native part of your app

Notify the SDK when onConfigurationChanged() API callback is received in your App's Activity class.

public class MainActivity extends FlutterActivity {
  ...
  @Override
  public void onConfigurationChanged(Configuration newConfig) {
    super.onConfigurationChanged(newConfig);
    MoEFlutterHelper.getInstance().onConfigurationChanged();
    ...
  }
  ...
}

Call MoEngage plugin's orientation change API

Call the below API to notify SDK of the orientation change.

_moengagePlugin.onOrientationChanged();
